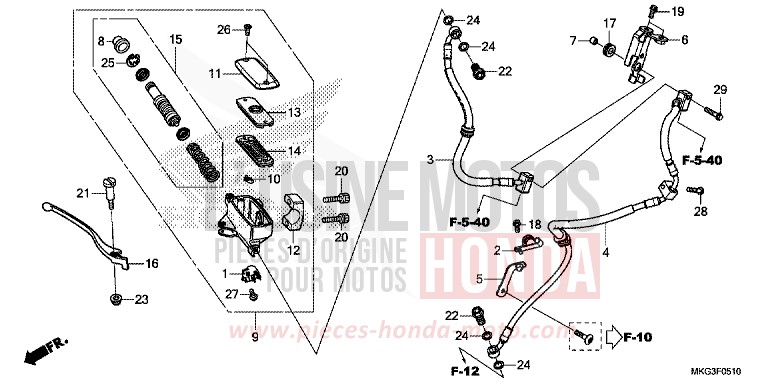

FRONT BRAKE MASTER CYLINDER for CMX500 GRAPHITE BLACK (NHB01) from 2019

FRONT BRAKE MASTER CYLINDER for CMX500 GRAPHITE BLACK (NHB01) from 2019
Reference
Product name
#1 35340-MGS-D31

SWITCH ASSY, FR STOP (ALPS)

Price €41.32
#2 43155-K87-L50

CLAMPER, BRAKE HOSE

Price €8.87
#3 45125-K87-L51

HOSE COMP A, FR BRAKE

Price €76.39
#4 45128-K87-L51

HOSE COMP D, FR BRAKE

Price €113.51
#5 45155-K87-A00

STAY COMP, FR BRAKE HOSE

Price €6.49
#6 45160-K87-L50

STAY COMP B, FR BRAKE HOSE

Price €20.87
#7 45161-K87-L50

COLLAR, BRAKE HOSE STAY

Price €5.68
#8 45504-410-003

BOOT COMP

Price €15.22
#9 45510-K87-A01

CYLINDER SUB ASSY, FR MASTER (NISSIN)

Price €274.33
#10 45512-MA6-006

PROTECTOR

Price €74.21
#11 45513-MM5-016

CAP, MASTER CYLINDER (NISSIN)

Price €52.61
#12 45517-MAV-751

HOLDER, MASTER CYLINDER (NISSIN)

Price €26.65
#13 45518-MM5-006

PLATE, DIAPHRAGM

Price €15.23
#14 45520-MM5-006

DIAPHRAGM

Price €33.04
#15 45530-K03-M61

CYLINDER SET, MASTER (NISSIN)

Price €40.74
#16 53175-MR5-003

LEVER COMP, R HANDLE

Price €29.26
#17 64312-KWW-640

GROMMET, MAIN PIPE COVER

Price €5.09
#18 90013-GHB-600

BOLT, FLANGE, 6X10

Price €5.36
#19 90013-GHB-610

BOLT, FLANGE, 6X12

Price €5.98
#20 90111-GHB-660

BOLT, SOCKET, 6X22

Price €4.30
#21 90114-MA5-671

BOLT, HANDLE LEVER PIVOT

Price €11.93
#22 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#23 90202-KCW-870

NUT, CAP, 6MM

Price €5.93
#24 90545-300-000

WASHER, OIL BOLT

Price €6.41
#25 90651-K03-M61

CIRCLIP, INTERNAL, 188MM

Price €5.68
#26 93600-040121G

SCREW, FLAT, 4X12

Price €0.76
#27 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#28 90013-GHB-680

BOLT, FLANGE, 6X28

Price €5.93
#29 90013-GHB-690

BOLT, FLANGE, 6X32

Price €6.85
