CYLINDER HEAD COVER 🏍️ CMX500
CAMSHAFT/VALVE 🏍️ CMX500

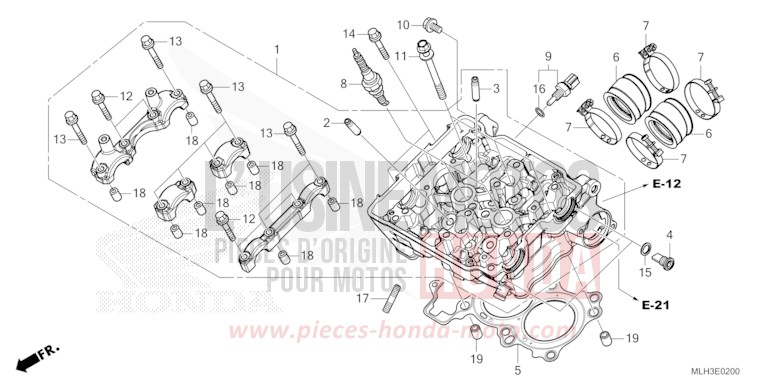

CYLINDER HEAD for CMX500 CANDY ENERGY ORANGE (YR249) from 2025

CYLINDER HEAD for CMX500 CANDY ENERGY ORANGE (YR249) from 2025
Reference
Product name
#1 12010-MKG-D81

HEAD ASSY, CYLINDER

Price €1,364.99
#2 12204-KYJ-305

GUIDE, IN VALVE (OS) (EXHAUST SIDE)

Price €31.15
#3 12205-KYJ-305

GUIDE, EX VALVE (OS)

Price €31.15
#4 12207-MGZ-J00

BOLT, SEALING, 12MM

Price €10.44
#5 12251-MGZ-J01

GASKET, CYLINDER HEAD

Price €43.62
#6 16211-MLH-A00

INSULATOR, THROTTLE BODY

Price €33.40
#7 16217-MLH-A00

BAND, INSULATOR

Price €10.34
#8 31916-KRM-841

PLUG, SPARK (CPR8EA-9) (NGK)

Price €16.49
#9 37870-KZR-601

SENSOR ASSY, WATER TEMPERATURE...

Price €68.99
#10 90001-MKG-A00

BOLT, SPECIAL, 10X16

Price €8.06
#11 90007-MGZ-J00

BOLT-WASHER, 9X100

Price €10.57
#12 90017-KYJ-900

BOLT, FLANGE, 6X32

Price €3.74
#13 90019-KYJ-900

BOLT, FLANGE, 6X395

Price €3.74
#14 90023-GHB-720

BOLT, FLANGE, 6X35

Price €6.84
#15 90418-KYJ-900

WASHER, 122X17X15

Price €3.96
#16 91307-PLC-004

O-RING, 95X19 (PANASONIC)

Price €4.76
#17 92900-080223E

BOLT, STUD, 8X22

Price €2.72
#18 94301-08140

DOWEL PIN, 8X14

Price €2.02
#19 94301-12160

PIN A, DOWEL, 12X16

Price €2.04
