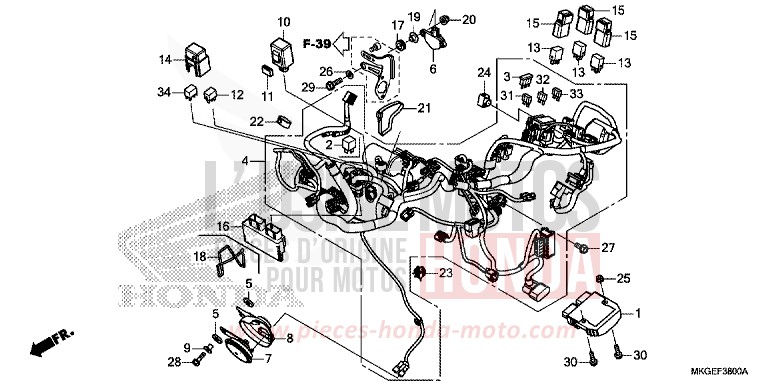

WIRE HARNESS for CMX500 CANDY DIESEL RED (R326) from 2023

WIRE HARNESS for CMX500 CANDY DIESEL RED (R326) from 2023
Reference
Product name
#1 31600-MKN-D51

RECTIFIER ASSY, REGULATE

Price €245.41
#2 31700-196-000

RECTIFIER COMP, SILICON

Price €42.31
#3 31730-MAS-601 i

DIODE ASSY, THREE WAY (SUMITOMO)

Price €22.76
#4 32100-MLH-D00

HARNESS, WIRE

Price €485.40
#5 33714-KL3-620

RUBBER, TAILLIGHT BRACKET

Price €7.60
#6 35160-KVS-751

SENSOR ASSY, BANK ANGLE (M6)

Price €228.97
#7 38110-MGZ-J01

HORN COMP (HIGH)

Price €37.60
#8 38111-MGZ-J00

GUARD, HORN HEAT

Price €9.37
#9 38117-MGZ-J00

COLLAR, HORN SETTING

Price €3.58
#10 38301-MKJ-D01

RELAY COMP, WINKER (LED)

Price €96.88
#11 38306-KK4-000

SUSPENSION, WINKER RELAY (MITSUBA)

Price €9.01
#12 38501-KVZ-631 i

RELAY ASSY, POWER (MICRO ISO 4P) (MITSUBA)

Price €22.63
#13 38501-MCS-G01 i

RELAY COMP, POWER (MICRO ISO 4P)

Price €21.71
#14 38506-KZZ-900

COVER, RELAY (2P)

Price €6.76
#15 38506-MCS-G00

SUSPENSION, POWER RELAY

Price €16.68
#16 38770-MLH-D02

PGM-FI UNIT

Price €609.12
#17 64535-MFJ-D00

RUBBER, SIDE COVER

Price €7.43
#18 80123-GN5-900

BAND, TOOL

Price €10.27
#19 90129-MGZ-J00

COLLAR, BANK ANGLE SENSOR

Price €4.88
#20 90202-KCW-870

NUT, CAP, 6MM

Price €1.93
#21 90620-SB2-003 i

BAND, WIRE HARNESS

Price €14.64
#22 90652-MKH-D20

BAND, RUBBER (50)

Price €7.19
#23 90690-GHB-631 i

CLIP, CABLE, 8MM

Price €2.08
#24 91771-MKG-D81

COUPLER, DUMMY (6P 025M)

Price €15.30
#25 94050-06070 i

NUT, FLANGE, 6MM

Price €1.08
#26 94101-06800 i

WASHER, PLAIN, 6MM

Price €0.78
#27 95701-0601408 i

BOLT, FLANGE, 6X14

Price €1.15
#28 95701-0602007 i

BOLT, FLANGE, 6X20

Price €1.15
#29 95701-0602008 i

BOLT, FLANGE, 6X20

Price €1.15
#30 95701-0602207 i

BOLT, FLANGE, 6X22

Price €1.34
#31 98200-40750

FUSE, MINI (75A)

Price €1.25
#32 98200-41500

FUSE, MINI (15A)

Price €1.25
#33 98200-43000

FUSE, MINI (30A)

Price €1.85
