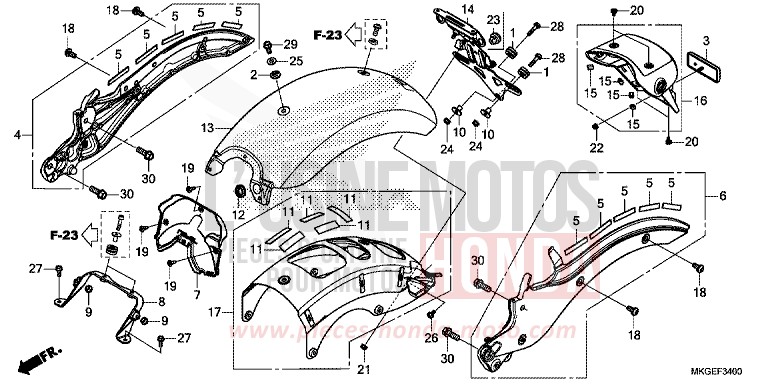

REAR FENDER for CMX500 CANDY DIESEL RED (R326) from 2023

REAR FENDER for CMX500 CANDY DIESEL RED (R326) from 2023
Reference
Product name
#1 17245-107-010 i

RUBBER, AIR CLEANER CASE MOUNTING

Price €10.15
#2 18422-K87-A00

COLLAR, PILLION SEAT SETTING

Price €5.71
#3 33741-KPL-902 i

REFLECTOR, REFLEX (FIEM)

Price €3.67
#3 33741-KWN-901

REFLECTOR, REFLEX (STANLEY)

Price €21.78
#4 50240-K87-A00ZA

FRAME ASSY, R RR NH105 (NH105 MAT BLACK(15-20))

Price €308.75
#5 50242-K87-A00

RUBBER, RR FRAME

Price €4.14
#6 50245-K87-A00ZA

FRAME ASSY, L RR NH105 (NH105 MAT BLACK(15-20))

Price €308.75
#7 50327-K87-A30

BOX B, BATTERY

Price €19.82
#8 50351-K87-A30

STAY, SEAT MOUNTING

Price €26.64
#9 50352-GS6-000

RUBBER, LINK STOPPER

Price €7.92
#10 61104-428-010 i

COLLAR, FR FENDER (WHITE)

Price €12.07
#11 80102-K87-A00

RUBBER, RR FENDER

Price €4.50
#12 80103-K87-A00

RUBBER, TAILLIGHT CODE

Price €6.42
#14 80115-K87-A30

STAY A, RR FENDER

Price €49.99
#15 80119-MGE-300

RUBBER, PROTECTOR

Price €13.82
#16 80120-K87-A30

FENDER ASSY A, RR

Price €51.59
#17 80130-K87-A30

PLATE ASSY, RR FRAME

Price €246.62
#18 90108-K87-A00

BOLT, SOCKET SPECIAL, 8X18

Price €2.98
#19 90116-SP0-003

CLIP, BUMPER SEAL

Price €3.36
#20 90138-K87-A30

BOLT, SPECIAL, 5X10

Price €2.98
#21 90301-KGH-901

NUT, U, 6MM (FUJI SEIMITSU)

Price €3.16
#22 90301-KWN-901

NUT, U, 5MM (FUJI SEIMITSU)

Price €3.16
#24 94050-06000 i

NUT, FLANGE, 6MM

Price €0.79
#25 94101-08700

WASHER, PLAIN, 8MM

Price €0.64
#26 95701-0601007 i

BOLT, FLANGE, 6X10

Price €1.00
#27 95701-0601607 i

BOLT, FLANGE, 6X16

Price €1.00
#28 95701-0602500 i

BOLT, FLANGE, 6X25

Price €1.34
#29 95701-0801807 i

BOLT, FLANGE, 8X18

Price €1.34
#30 95701-1002800 i

BOLT, FLANGE, 10X28

Price €1.92
#13 80110-K2Y-A00ZE

FENDER SET, RR (WL) TYPE2 (TYPE2 )

Price €237.01
