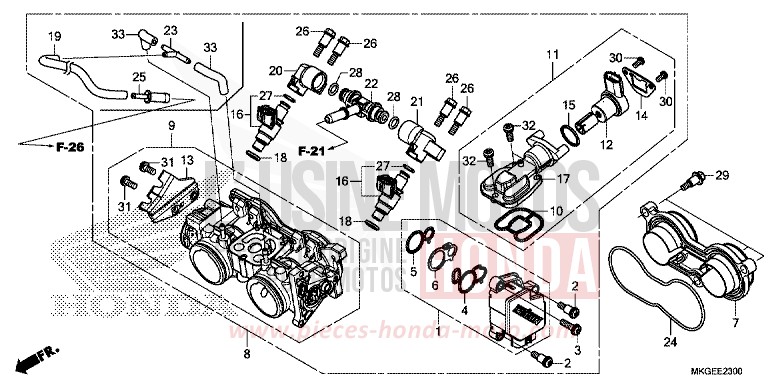

THROTTLE BODY for CMX500 CANDY DIESEL RED (R326) from 2023

THROTTLE BODY for CMX500 CANDY DIESEL RED (R326) from 2023
Reference
Product name
#1 16060-MKG-L01

SENSOR SET

Price €440.89
#2 16081-KPH-701

SCREW, TORX, 5X87

Price €6.74
#3 16082-KPH-701

SCREW, TORX, 5X17

Price €6.95
#4 16083-MGZ-D01

O-RING, SENSOR

Price €13.96
#5 16084-MGZ-D01

O-RING, SENSOR

Price €12.91
#6 16085-MGZ-D01

PLATE

Price €26.18
#7 16188-MKG-A00

PLATE, FUNNEL SETTING

Price €15.13
#8 16400-MKG-D81

BODY ASSY, THROTTLE (GQB9A A)

Price €829.78
#9 16410-MKG-D81

BODY SET

Price €527.57
#10 16428-MGZ-D01

O-RING, AIR INJECTION CONTROL VALVE

Price €20.48
#11 16430-MJW-J01

VALVE SET, IDLE AIR CONTROL

Price €260.02
#12 16431-MJP-G51

MOTOR ASSY

Price €239.66
#13 16432-MGZ-D01

STAY, WIRE

Price €52.74
#14 16433-MEW-921

PLATE, IDLE AIR CONTROL VALVE

Price €20.26
#15 16435-MFJ-D01

O-RING, 178X19

Price €6.07
#16 16450-MKP-T02

INJECTOR ASSY, FUEL

Price €86.24
#17 16451-MGZ-D01

BODY COMP, IDLE AIR CONTROL VALVE

Price €112.76
#18 16472-MKP-T00

SEAL RING, INJECTOR

Price €18.07
#19 16482-MKG-L01

TUBE, PURGE

Price €26.98
#20 16610-MKP-T01

PIPE, FUEL (A)

Price €31.78
#21 16620-MKP-T01

PIPE, FUEL (B)

Price €31.78
#22 16630-MFJ-D00

T-JOINT, FUEL

Price €59.52
#23 17201-MG9-000

JOINT A, VACUUM TUBE

Price €20.78
#24 17215-MGZ-D00

SEAL, THROTTLE BODY

Price €3.55
#25 19126-KM1-010

JOINT, TUBE

Price €6.41
#26 90021-MGZ-D02

BOLT, SHOULDER

Price €5.39
#27 91301-MKP-T01

O-RING

Price €8.41
#28 91301-PLC-000

O-RING, 747X36

Price €5.21
#29 91508-MM5-000

SCREW, PAN, 5MM

Price €8.63
#30 93500-040081H

SCREW, PAN, 4X8

Price €0.77
#31 93892-0501218

SCREW-WASHER, 5X12

Price €1.32
#32 93892-0501418

SCREW-WASHER, 5X14

Price €0.86
#33 95005-3504520

TUBE, 35X45 (95005-35001-20M)

Price €1.60
