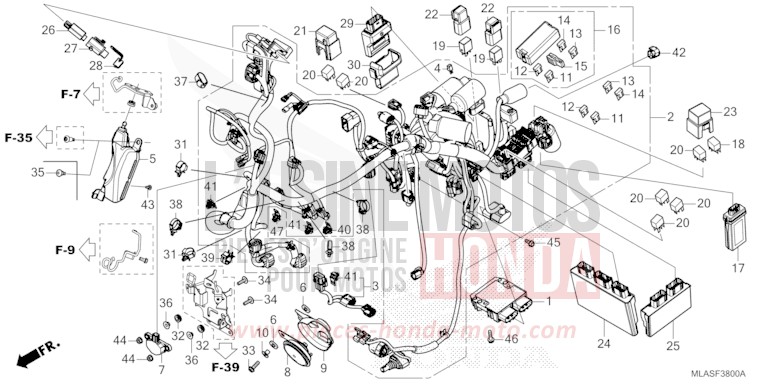

WIRE HARNESS for CMX1100 IRIDIUM GRAY METALLIC (NHC65) from 2025

WIRE HARNESS for CMX1100 IRIDIUM GRAY METALLIC (NHC65) from 2025
Reference
Product name
#1 31600-MKN-D51

RECTIFIER ASSY, REGULATE

Price €245.41
#3 32101-MLA-A00

SUB HARNESS, ENGINE

Price €62.48
#4 32146-S84-003

CONNECTOR, DIODE (2P) (3A)

Price €24.08
#5 33460-MLA-A00

BOX ASSY, CONNECTOR

Price €42.17
#6 33714-KL3-620

RUBBER, TAILLIGHT BRACKET

Price €7.60
#7 35160-KVS-751

SENSOR ASSY, BANK ANGLE (M6)

Price €228.97
#8 38110-MGZ-J01

HORN COMP (HIGH)

Price €37.60
#9 38111-MGZ-J00

GUARD, HORN HEAT

Price €9.37
#10 38117-MGZ-J00

COLLAR, HORN SETTING

Price €3.58
#11 38221-SNA-A31

FUSE, BLADE (75A)

Price €6.85
#12 38221-SNA-A41

FUSE, BLADE (10A)

Price €6.85
#13 38221-SNA-A61

FUSE, BLADE (20A)

Price €6.85
#14 38221-SNA-A81

FUSE, BLADE (30A)

Price €6.85
#15 38235-SNA-A01

PULLER, MINI FUSE

Price €6.65
#16 38255-MLA-A01

COVER ASSY, POWER BOX

Price €54.98
#17 38351-K1B-D25 i

BLUETOOTH UNIT

Price €271.03
#18 38501-KVZ-631 i

RELAY ASSY, POWER (MICRO ISO 4P) (MITSUBA)

Price €22.63
#19 38501-MCS-G01 i

RELAY COMP, POWER (MICRO ISO 4P)

Price €21.71
#20 38501-MKP-DN1 i

RELAY COMP, POWER (MICRO ISO 4P)

Price €7.66
#21 38506-KZZ-900

COVER, RELAY (2P)

Price €6.76
#22 38506-MCS-G00

SUSPENSION, POWER RELAY

Price €16.68
#26 38940-MKR-D11

CHARGER UNIT, USB (TYPE-C)

Price €115.32
#30 38956-K2L-D01

CUSHION, BODY CONTROL UNIT

Price €52.78
#31 53781-SE0-952

CLIP, RETURN HOSE

Price €7.55
#32 64535-MFJ-D00

RUBBER, SIDE COVER

Price €7.43
#33 90031-GHB-660

BOLT, FLANGE, 6X20

Price €5.83
#34 90118-MEJ-J00

SCREW, PAN, 6X20

Price €7.08
#35 90127-MCP-900

BOLT, SPECIAL, 6MM

Price €5.71
#36 90129-MGZ-J00

COLLAR, BANK ANGLE SENSOR

Price €4.88
#37 90651-MKH-D20

BAND, RUBBER (70)

Price €11.89
#38 90652-HC4-003 i

CLAMP, HARNESS

Price €8.45
#40 91535-STK-003

CLIP, COUPLER (DARK BLUE)

Price €11.84
#41 91535-TA0-003

CLIP, COUPLER (DARK BROWN)

Price €11.84
#42 91771-MKK-H11

CAP, DUMMY (6P) (RED)

Price €24.54
#43 93903-24380 i

SCREW, TAPPING, 4X12

Price €1.21
#44 94050-06070 i

NUT, FLANGE, 6MM

Price €1.08
#45 95701-0601608 i

BOLT, FLANGE, 6X16

Price €1.08
#46 95701-0602207 i

BOLT, FLANGE, 6X22

Price €1.34
#2 32100-MLA-DA0

HARNESS, WIRE

Price €1,061.89
#23 38506-MLA-AA0

SUSPENSION, RELAY (2P)

Price €14.16
#24 38770-MLA-DA2 i

PGM-FI UNIT

Price €2,505.65
#27 38941-MLA-AA0

COVER, USB CHARGER (TYPE-C)

Price €19.22
#28 38942-MLA-AA0

CAP, USB CHARGER COVER

Price €12.35
#29 38950-MLA-AA1

CONTROL UNIT, BODY

Price €379.74
