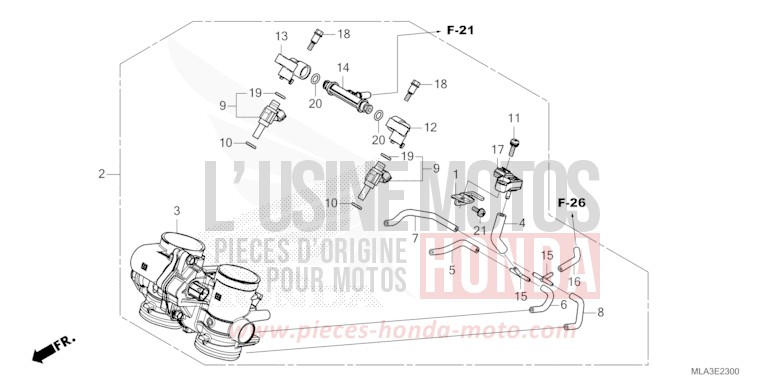

THROTTLE BODY for CMX1100 IRIDIUM GRAY METALLIC (NHC65) from 2023

THROTTLE BODY for CMX1100 IRIDIUM GRAY METALLIC (NHC65) from 2023
Reference
Product name
#1 16191-MLA-A01

STAY, PB SENSOR

Price €21.40
#2 16400-MLA-A01

BODY ASSY, THROTTLE (GNJ2A A)

Price €1,583.40
#3 16410-MLA-A01

BODY SET

Price €972.47
#4 16411-MLA-A00

TUBE, MAP SENSOR

Price €7.62
#5 16412-MLA-A00

TUBE, PB (R)

Price €7.42
#6 16413-MLA-A00

TUBE, PB (L)

Price €7.42
#7 16414-MLA-A00

TUBE, PURGE (R)

Price €9.71
#8 16415-MLA-A00

TUBE, PURGE (L)

Price €6.86
#9 16450-MKS-E01

INJECTOR ASSY, FUEL

Price €353.08
#10 16472-MKP-T00

SEAL RING, INJECTOR

Price €18.07
#11 16542-MEL-003

BOLT-WASHER, 6X18

Price €8.33
#12 16610-MKP-T01

PIPE, FUEL (A)

Price €31.78
#13 16620-MKP-T01

PIPE, FUEL (B)

Price €31.78
#14 16630-MKS-E01

T-JOINT, FUEL

Price €52.19
#15 17201-MG9-000

JOINT A, VACUUM TUBE

Price €20.78
#16 17419-MLA-A00

TUBE, JOINT-HEAD

Price €7.08
#17 46401-TM8-A01

SENSOR A, MASTER POWER PRESSURE

Price €331.27
#18 90021-MGZ-D02

BOLT, SHOULDER

Price €5.39
#19 91301-MKP-T01

O-RING

Price €8.41
#20 91301-PLC-000

O-RING, 747X36

Price €5.21
#21 93892-0601418

SCREW-WASHER, 6X14

Price €1.18
