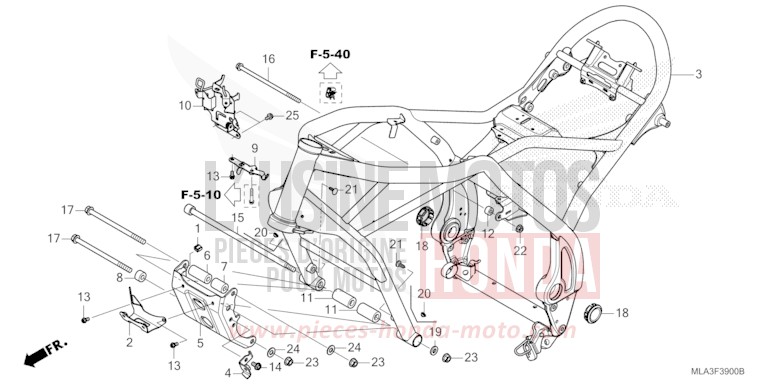

FRAME BODY for CMX1100 BORDEAUX RED METALLIC (R337) from 2021

FRAME BODY for CMX1100 BORDEAUX RED METALLIC (R337) from 2021
Reference
Product name
#1 18293-MCA-A20

RUBBER, PROTECTOR PACKING

Price €8.24
#2 19132-MLA-A00

STAY, RADIATOR LOWER

Price €50.35
#3 50100-MLA-A00ZA

BODY COMP, FRAME NH1 (NH1 BLACK)

Price €3,317.29
#4 50170-MLA-A00

STAY, HORN

Price €25.75
#5 50201-MLA-A00

BRACKET COMP, ENGINE HANGER

Price €444.55
#6 50202-MLA-A00

COLLAR, R ENGINE HANGER UPPER

Price €29.54
#7 50203-MLA-A00

COLLAR, L ENGINE HANGER UPPER

Price €28.24
#8 50204-MLA-A00

COLLAR, R ENGINE HANGER LOWER

Price €15.60
#9 50290-MLA-A00

STAY, RADIATOR UPPER

Price €30.61
#10 50341-MLA-A00

STAY COMP, FILLER NECK

Price €83.82
#11 50350-MLA-A00

COLLAR A, ENGINE HANGER

Price €29.15
#12 50352-MLA-A00

COLLAR C, L ENGINE HANGER

Price €11.08
#13 90021-GHB-620

BOLT, FLANGE, 6X12 (S-SHDR)

Price €5.46
#14 90036-GHB-630

BOLT, FLANGE, 8X14

Price €5.46
#15 90101-MLA-A00

BOLT, SPECIAL, 10X312

Price €53.20
#16 90102-MLA-A00

BOLT, FLANGE, 8X180

Price €16.70
#17 90103-MLA-A00

BOLT, FLANGE, 10X164

Price €19.18
#18 90307-MLA-A00

CAP, PIVOT

Price €11.71
#19 90502-MLA-A00

WASHER, 10MM

Price €7.48
#20 90852-446-630

PLUG, HOLE

Price €7.91
#21 91501-MLA-A01

CLIP, BRUSH

Price €6.94
#22 94050-08070 i

NUT, FLANGE, 8MM

Price €1.08
#23 94050-10070

NUT, FLANGE, 10MM

Price €1.50
#24 94101-10700

WASHER, PLAIN, 10MM

Price €1.24
#25 95701-0601008 i

BOLT, FLANGE, 6X10

Price €1.08
