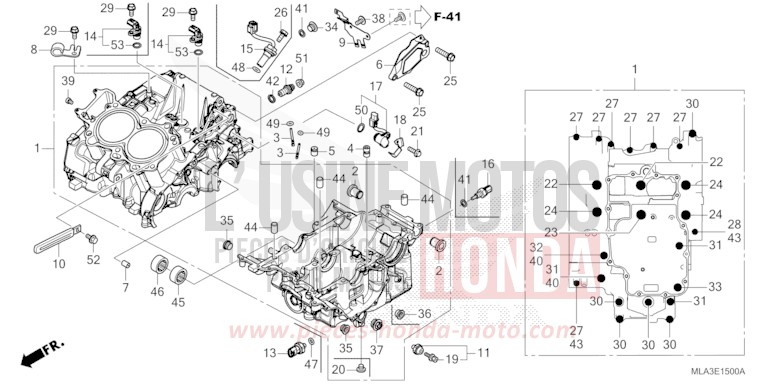

CRANKCASE for CMX1100 BORDEAUX RED METALLIC (R337) from 2021

CRANKCASE for CMX1100 BORDEAUX RED METALLIC (R337) from 2021
Reference
Product name
#1 11000-MLA-A50

CRANKCASE SET

Price €4,760.15
#2 11104-MJP-G50

COLLAR, ENGINE HANGER

Price €22.20
#3 11140-MKS-E00

JET COMP, OIL

Price €41.46
#4 11206-MJP-G50

ORIFICE

Price €22.09
#5 11207-MKS-E00

ORIFICE, 12MM

Price €16.36
#7 15516-MGS-D30

ORIFICE, 08MM

Price €12.54
#9 32155-MLA-A00

STAY, HARNESS CLIP

Price €32.63
#12 35600-MK4-860

SWITCH ASSY, NEUTRAL

Price €35.48
#13 37260-MGE-641

SENSOR, OIL PRESSURE

Price €357.01
#14 37700-MJE-D01

SENSOR ASSY, SPEED (TDK-EPC)

Price €133.32
#15 37710-MJP-G81

SENSOR ASSY, SPEED

Price €330.12
#16 37750-KPH-701

SENSOR ASSY, THERMOSTAT OIL (PANASONIC)

Price €156.02
#17 38800-MJP-G81

SENSOR ASSY, ANGLE (350DEGREE)

Price €429.38
#18 38805-MJP-G80

COVER, ANGLE SENSOR

Price €31.00
#20 90005-MJP-G80

BOLT, SOCKET, 10MM

Price €8.72
#21 90011-MGE-D00

BOLT, KNOCK, 6MM

Price €7.73
#22 90015-MJP-G50

BOLT, FLANGE, 10X110

Price €13.94
#23 90015-MKS-E00

BOLT, FLANGE, 10X130

Price €10.88
#24 90016-MJP-G50

BOLT, FLANGE, 10X145

Price €16.22
#26 90030-GHB-630

BOLT, FLANGE, 6X14

Price €5.89
#27 90030-GHB-720

BOLT, FLANGE, 6X35

Price €6.90
#28 90030-GHB-780

BOLT, FLANGE, 6X60

Price €7.21
#29 90031-GHB-640

BOLT, FLANGE, 6X16

Price €5.47
#30 90035-GHB-740

BOLT, FLANGE, 8X40

Price €7.09
#31 90035-GHB-770

BOLT, FLANGE, 8X55

Price €7.73
#32 90035-GHB-850

BOLT, FLANGE, 8X95

Price €8.84
#33 90040-GHB-810

BOLT, FLANGE, 10X75

Price €9.96
#35 90046-MKK-D00

BOLT, SEALING, 18MM

Price €20.69
#36 90047-MJP-G80

BOLT, SEALING, 22MM

Price €11.34
#38 90106-KSE-000

SCREW, PAN, 6X12

Price €3.88
#39 90119-SD9-000

BOLT, SEALING, 8MM

Price €8.41
#40 90442-028-000

WASHER, SEALING, 8MM

Price €3.34
#41 90443-MB0-000

WASHER, SEALING, 102MM

Price €5.98
#42 90443-MJ6-000

WASHER, NEUTRAL

Price €3.89
#43 90488-425-000

WASHER, SEALING, 6MM

Price €4.40
#44 90701-MV9-670

DOWEL PIN, 10X16

Price €7.90
#45 91021-MKS-E01

BEARING, NEEDLE, 12X16X10

Price €19.26
#46 91022-MKS-E01

BEARING, SEAL NEEDLE, 12X18X14

Price €20.54
#47 91301-MEH-003

O-RING, 13X15

Price €5.10
#48 91302-MAL-601

O-RING, 181X36

Price €4.66
#49 91305-MCJ-751

O-RING, 32X11

Price €3.01
#50 91310-MGE-D01

O-RING, 165X25

Price €9.17
#51 94050-04000

NUT, FLANGE, 4MM

Price €0.86
#53 91303-KF0-003

O-RING, 148X24 (ARAI)

Price €5.46
