SIDE STAND 🏍️ CMX 1100 "Rebel"
REAR CUSHION 🏍️ CMX 1100 "Rebel"

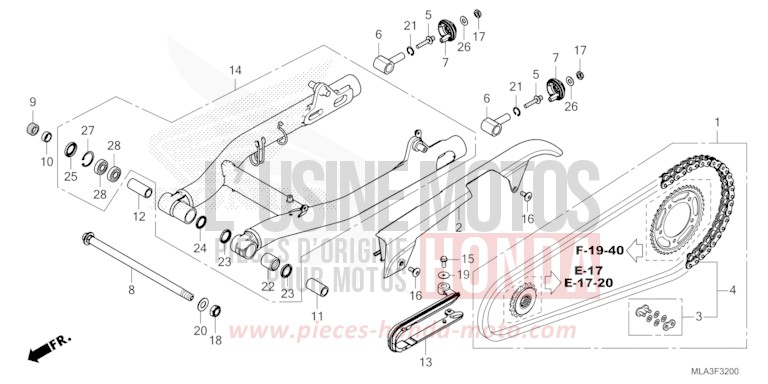

SWINGARM for CMX 1100 "Rebel" BORDEAUX RED METALLIC (R337) from 2021

SWINGARM for CMX 1100 "Rebel" BORDEAUX RED METALLIC (R337) from 2021
Reference
Product name
#1 06406-MLA-D00

CHAIN KIT, DRIVE (525-16&amp42T) (STANDARD LINK...

Price €313.52
#2 40510-MLA-A00

CASE, DRIVE CHAIN

Price €139.28
#3 40531-MLA-A02

JOINT, DRIVE CHAIN (RK JAPAN)

Price €29.22
#4 40540-MLA-A02

CHAIN, DRIVE (RK JAPAN) (RKBP525MRO-120LJFZ)...

Price €430.67
#5 40542-K87-A00

BOLT, CHAIN ADJUSTING

Price €4.70
#6 40543-MLA-A00

ADJUSTER COMP, CHAIN

Price €58.55
#7 40546-MLA-A00

CAP, SWINGARM END

Price €38.86
#8 52101-MLA-A00

BOLT, SWINGARM PIVOT

Price €107.92
#9 52109-MLA-A00

BOLT, PIVOT ADJUSTING

Price €28.84
#10 52141-MKS-E00

BAND A OF PIVOT

Price €10.98
#11 52142-MLA-A00

COLLAR, L PIVOT DISTANCE

Price €28.96
#12 52143-MLA-A00

COLLAR, R PIVOT DISTANCE

Price €28.96
#13 52170-MLA-A00

SLIDER, CHAIN

Price €59.66
#14 52200-MLA-A00

SWINGARM SUB ASSY, RR

Price €1,510.40
#15 90013-GHB-620

FLANGE BOLT, 6X14

Price €5.96
#16 90118-MJK-N20

SPECIAL SCREW, 6X14

Price €8.32
#17 90301-MLA-A01

NUT, U, 10MM

Price €9.91
#18 90305-GW2-711 i

NUT U, 16MM

Price €20.44
#19 90404-GE2-760

WASHER PLATE, 6MM

Price €6.26
#20 90501-K87-A00

WASHER PLATE, 16.4X32X2

Price €4.31
#21 90651-K87-A00

CIRCLIP, INTERNAL, 20MM

Price €4.75
#22 91071-MT7-003

NEEDLE BEARING (NTN)

Price €23.69
#23 91202-MAL-601

COVER-POUSSIERE, 25X33X4

Price €7.54
#24 91203-GC8-003 i

GASKET SEALING OIL, 24X31X3.5

Price €11.53
#25 91214-MAL-601

COVER-POUSSIERE, 23X35X5

Price €8.05
#26 94101-10700

WASHER PLATE, 10MM

Price €1.24
#27 94520-35000

INNENSPRENGRING, 35MM

Price €1.74
#28 96100-6003010

RADIAL BALL BEARING, 6003

Price €20.20
