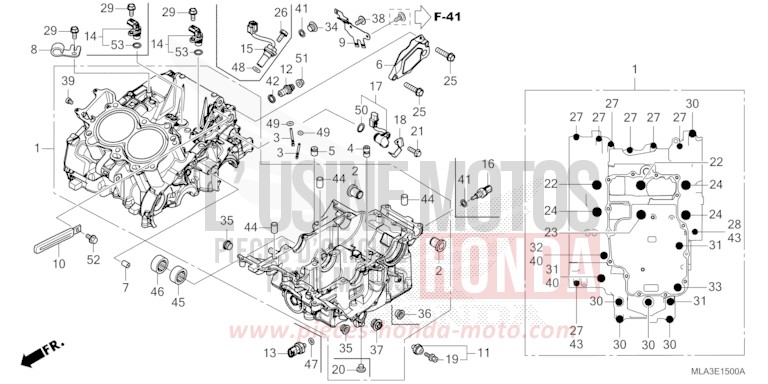

CARTER MOTEUR for CMX1100 ACHILLES BLACK METALLIC-U (NH124) from 2021

CARTER MOTEUR for CMX1100 ACHILLES BLACK METALLIC-U (NH124) from 2021
Reference
Product name
#1 11000-MLA-A00

CRANKCASE SET

Price €7,216.44
#2 11104-MJP-G50

COLLAR, ENGINE HANGER

Price €22.20
#3 11140-MKS-E00

JET COMP, OIL

Price €41.46
#4 11206-MJP-G50

ORIFICE

Price €22.09
#5 11207-MKS-E00

ORIFICE, 12MM

Price €16.36
#6 11520-MJP-G50

COVER COMP, REDUCTION GEAR

Price €48.29
#7 15516-MGS-D30

ORIFICE, 08MM

Price €12.54
#8 22821-MJP-G50

RECEIVER, CLUTCH CABLE

Price €17.57
#9 32155-MLA-A00

STAY, HARNESS CLIP

Price €32.63
#10 32170-443-850

CLIP, WIRE HARNESS

Price €6.19
#11 35500-MEH-661

SWITCH ASSY, OIL PRESSURE (DENSO)

Price €91.68
#12 35600-MKF-D41

SWITCH ASSY, NEUTRAL

Price €39.65
#14 37700-MJE-D01

SENSOR ASSY, SPEED (TDK-EPC)

Price €133.32
#17 38800-MJP-G81

SENSOR ASSY, ANGLE (350DEGREE)

Price €429.38
#18 38805-MJP-G80

COVER, ANGLE SENSOR

Price €31.00
#19 90002-PA6-003

BOLT-WASHER, 4X8 (DENSO)

Price €3.80
#21 90011-MGE-D00

BOLT, KNOCK, 6MM

Price €7.73
#22 90015-MJP-G50

BOLT, FLANGE, 10X110

Price €13.94
#23 90015-MKS-E00

BOLT, FLANGE, 10X130

Price €10.88
#24 90016-MJP-G50

BOLT, FLANGE, 10X145

Price €16.22
#25 90026-GHB-680

BOLT, FLANGE, 6X25 (S-NSHF)

Price €6.42
#27 90030-GHB-720

BOLT, FLANGE, 6X35

Price €6.90
#28 90030-GHB-780

BOLT, FLANGE, 6X60

Price €7.21
#29 90031-GHB-640

BOLT, FLANGE, 6X16

Price €5.47
#30 90035-GHB-740

BOLT, FLANGE, 8X40

Price €7.09
#31 90035-GHB-770

BOLT, FLANGE, 8X55

Price €7.73
#32 90035-GHB-850

BOLT, FLANGE, 8X95

Price €8.84
#33 90040-GHB-810

BOLT, FLANGE, 10X75

Price €9.96
#34 90044-MKC-A00

BOLT, SPECIAL, 10X12

Price €9.07
#35 90046-MKK-D00

BOLT, SEALING, 18MM

Price €20.69
#37 90048-MFL-000

BOLT, SEALING, 22MM

Price €16.54
#38 90106-KSE-000

SCREW, PAN, 6X12

Price €3.88
#39 90119-SD9-000

BOLT, SEALING, 8MM

Price €8.41
#40 90442-028-000

WASHER, SEALING, 8MM

Price €3.34
#41 90443-MB0-000

WASHER, SEALING, 102MM

Price €5.98
#42 90443-MJ6-000

WASHER, NEUTRAL

Price €3.89
#43 90488-425-000

WASHER, SEALING, 6MM

Price €4.40
#44 90701-MV9-670

DOWEL PIN, 10X16

Price €7.90
#45 91021-MKS-E01

BEARING, NEEDLE, 12X16X10

Price €19.26
#46 91022-MKS-E01

BEARING, SEAL NEEDLE, 12X18X14

Price €20.54
#49 91305-MCJ-751

O-RING, 32X11

Price €3.01
#50 91310-MGE-D01

O-RING, 165X25

Price €9.17
#51 94050-04000

NUT, FLANGE, 4MM

Price €0.86
#52 96001-0601200

BOLT, FLANGE, 6X12

Price €1.22
#53 91303-KF0-003

O-RING, 148X24 (ARAI)

Price €5.46
