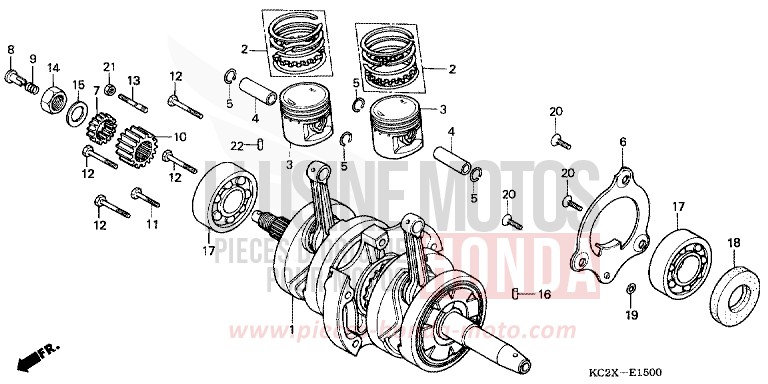

CRANKSHAFT/PISTON for CM125C PEARL ATLANTIS BLUE (B142) from 1999

CRANKSHAFT/PISTON for CM125C PEARL ATLANTIS BLUE (B142) from 1999
Reference
Product name
#1 13000-402-731 i

CRANKSHAFT COMP

Contact us
#2 13011-399-003 i

RING SET, PISTON (STD)

Price €99.24
#3 13101-399-010 i

PISTON (STD)

Contact us
#4 13111-044-010

AXE, PISTON

Price €21.52
#5 13115-001-000 i

ATTACHE D'AXE OF PISTON

Price €0.88
#6 13385-KB4-670

PLATE OF PASSAGE D'OIL

Price €33.12
#7 15335-399-000

PINION B OF PUMP A OIL (19T)

Price €51.26
Contact us
#8 15441-149-000

PASSAGE OIL

Price €14.26
#9 15447-149-000

SPRING OF PASSAGE OIL

Price €6.66
#10 23121-402-730

PINION OF CONTROL PRIMAIRE (18T)

Contact us
#11 90001-KC1-750

BOLT HEX, 6X28

Contact us
#12 90002-KC1-750

BOLT HEX, 6X32

Price €2.62
Contact us
#13 90035-399-000

STUD, 7X32

Price €8.03
#14 90202-567-000

NUT OF MOYEU, 16MM

Price €4.98
Contact us
#15 90401-399-000

WASHER BLOCAGE

Price €12.07
#16 90703-399-000

STUD, 4X44

Price €11.46
#17 91001-402-700 i

ROULEMENT A BILLES RADIAL, 6305

Price €37.60
#18 91201-402-015 i

GASKET SEALING D'OIL, 35X52X7 (NOK)

Price €16.60
#19 91319-323-000

O-RING, 6X3

Price €7.00
#20 93600-060160A i

SCREW A HEAD PLATE, 6X16

Price €1.07
#21 94050-06000 i

FLANGE NUT, 6MM

Price €0.79
#22 96220-20138

ROULEAU, 2X138

Price €0.40
