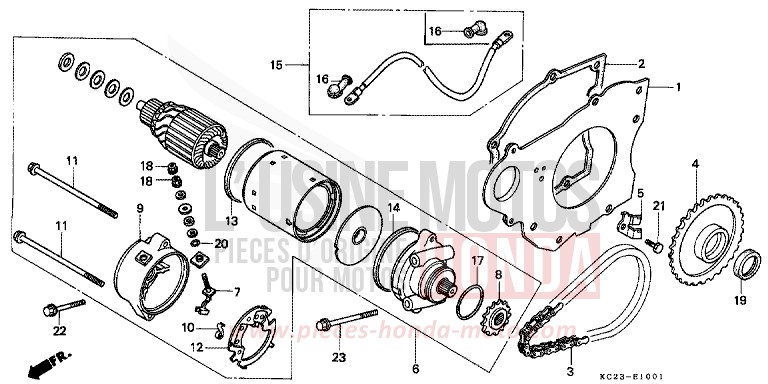

STARTING MOTOR (2) for CM125C CANDY BOURGOGNE RED-U (R107) from 1994

STARTING MOTOR (2) for CM125C CANDY BOURGOGNE RED-U (R107) from 1994
Reference
Product name
#1 11371-KB4-670

SPACER COMP, L SIDE

Price €63.97
#2 11394-KBG-771

GASKET, L CRANKCASE COVER

Price €12.72
#3 28101-KB4-671

CHAIN, STARTING (56L)

Price €61.50
#4 28110-KB4-671

SPROCKET COMP, STARTING (38T)

Price €141.10
#5 28117-402-000

PLATE, STARTING SPROCKET SETTING

Price €7.79
#6 31200-KW4-018

MOTOR ASSY, STARTING (MITSUBA)

Price €654.06
#7 31201-KS5-901

TERMINAL SET, BRUSH

Price €28.49
#8 31202-216-154

SPROCKET, STARTING MOTOR (13T)

Price €47.00
#10 31204-KS5-901

SPRING, CARBON BRUSH

Price €6.25
#11 31205-KC1-901

BOLT, SETTING

Price €6.97
#12 31206-MN4-008

HOLDER SET, BRUSH

Price €31.67
#13 31207-KS5-901

RING

Price €9.28
#14 31207-179-711

RING, SEAL

Price €8.42
#15 32410-KC2-680

CABLE, STARTER MOTOR

Contact us
#16 32411-253-000

COVER, STARTER MOTOR TERMINAL

Price €12.43
#17 53438-611-000

O-RING, PINION CAP

Price €8.27
#18 90071-MB0-000

NUT-WASHER, 6MM

Price €5.28
#19 91205-965-003

OIL SEAL, 22X31X5 (ARAI)

Price €7.73
#20 91320-MB0-000

O-RING, 4X2

Price €5.23
#21 92101-060100A

BOLT, HEX, 6X10

Price €1.04
#22 96001-0602500

BOLT, FLANGE, 6X25

Price €1.48
#23 96001-0606500

BOLT, FLANGE, 6X65

Price €1.78
