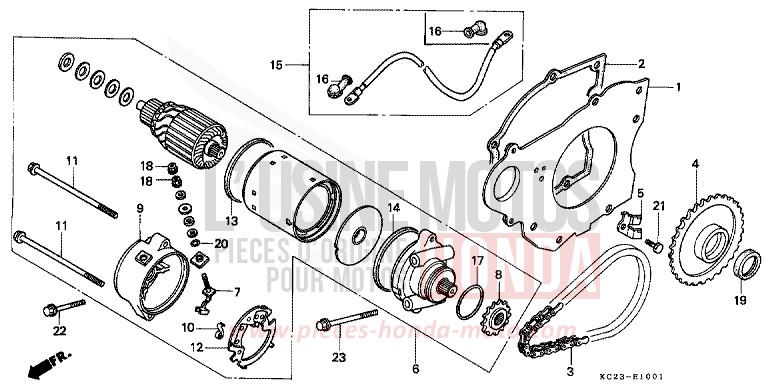

STARTING MOTOR (2) for CM125C CANDY BOURGOGNE RED-U (R107) from 1993

STARTING MOTOR (2) for CM125C CANDY BOURGOGNE RED-U (R107) from 1993
Reference
Product name
#1 11371-KB4-670

SPACER COMP, L SIDE

Price €131.96
#2 11394-KBG-771 i

GASKET, L CRANKCASE COVER

Price €23.20
#3 28101-KB4-671 i

CHAIN, STARTING (56L)

Price €56.17
#4 28110-KB4-671 i

SPROCKET COMP, STARTING (38T)

Price €177.67
#5 28117-402-000

PLATE, STARTING SPROCKET SETTING

Price €10.57
#6 31200-KW4-018

MOTOR ASSY, STARTING (MITSUBA)

Price €654.06
#7 31201-KS5-901 i

TERMINAL SET, BRUSH

Price €33.84
#8 31202-216-154

SPROCKET, STARTING MOTOR (13T)

Price €53.59
#9 31203-KW4-008

BRACKET, RR

Contact us
#10 31204-KS5-901 i

SPRING, CARBON BRUSH

Price €7.32
#11 31205-KC1-901 i

BOLT, SETTING

Price €7.19
#12 31206-MN4-008 i

HOLDER SET, BRUSH

Price €35.96
#13 31207-KS5-901 i

RING

Price €9.12
#14 31207-179-711

RING, SEAL

Price €5.63
#15 32410-KC2-680

CABLE, STARTER MOTOR

Contact us
#16 32411-253-000 i

COVER, STARTER MOTOR TERMINAL

Price €12.95
#17 53438-611-000

O-RING, PINION CAP

Price €10.09
#18 90071-MB0-000 i

NUT-WASHER, 6MM

Price €6.12
#19 91202-402-005 i

OIL SEAL, 22X31X5 (NOK)

Price €7.74
#19 91205-965-003 i

OIL SEAL, 22X31X5 (ARAI)

Price €7.74
#20 91320-MB0-000

O-RING, 4X2

Price €5.34
#21 92101-060100A i

BOLT, HEX, 6X10

Price €1.07
#22 96001-0602500 i

BOLT, FLANGE, 6X25

Price €1.50
#23 96001-0606500 i

BOLT, FLANGE, 6X65

Price €1.81
