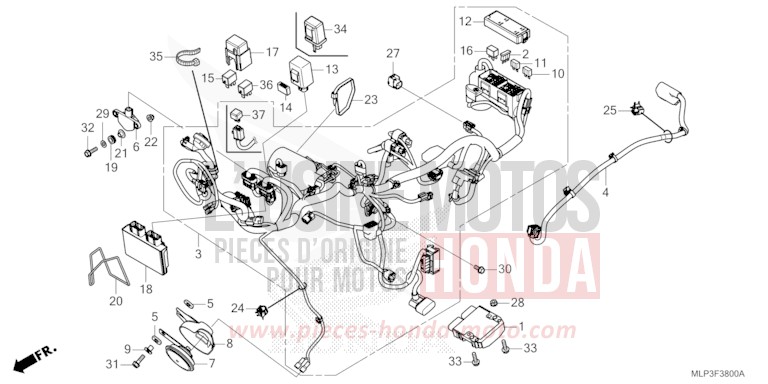

WIRE HARNESS for CL500A MAT FRESCO BROWN (Y215) from 2025

WIRE HARNESS for CL500A MAT FRESCO BROWN (Y215) from 2025
Reference
Product name
#1 31600-MKN-D51

RECTIFIER ASSY, REGULATE

Price €245.41
#2 31730-MAS-601 i

DIODE ASSY, THREE WAY (SUMITOMO)

Price €22.76
#4 32108-K3S-JA0

SUB HARNESS, RR

Price €53.15
#5 33714-KL3-620

RUBBER, TAILLIGHT BRACKET

Price €7.60
#6 35160-KVS-751

SENSOR ASSY, BANK ANGLE (M6)

Price €228.97
#7 38110-MGZ-J01

HORN COMP (HIGH)

Price €37.60
#8 38111-MGZ-J00

GUARD, HORN HEAT

Price €9.37
#9 38117-MGZ-J00

COLLAR, HORN SETTING

Price €3.58
#10 38221-SNA-A41

FUSE, BLADE (10A)

Price €6.85
#11 38221-SNA-A81

FUSE, BLADE (30A)

Price €6.85
#12 38255-K3S-JA0

COVER COMP, UPPER

Price €41.34
#13 38301-MKJ-D01

RELAY COMP, WINKER (LED)

Price €96.88
#14 38306-KK4-000

SUSPENSION, WINKER RELAY (MITSUBA)

Price €9.01
#15 38501-KVZ-631 i

RELAY ASSY, POWER (MICRO ISO 4P) (MITSUBA)

Price €22.63
#16 38501-MKP-DN1 i

RELAY COMP, POWER (MICRO ISO 4P)

Price €7.66
#17 38506-KZZ-900

COVER, RELAY (2P)

Price €6.76
#19 64535-MFJ-D00

RUBBER, SIDE COVER

Price €7.43
#20 80123-GN5-900

BAND, TOOL

Price €10.27
#21 90129-MGZ-J00

COLLAR, BANK ANGLE SENSOR

Price €4.88
#22 90202-KCW-870

NUT, CAP, 6MM

Price €1.93
#23 90620-SB2-003 i

BAND, WIRE HARNESS

Price €14.64
#24 90690-GHB-631 i

CLIP, CABLE, 8MM

Price €2.08
#25 90690-GHB-641 i

CLIP, CABLE, 10MM

Price €2.08
#27 91771-MKK-H11

CAP, DUMMY (6P) (RED)

Price €24.54
#28 94050-06070 i

NUT, FLANGE, 6MM

Price €1.08
#29 94101-06800 i

WASHER, PLAIN, 6MM

Price €0.78
#30 95701-0601408 i

BOLT, FLANGE, 6X14

Price €1.15
#31 95701-0602007 i

BOLT, FLANGE, 6X20

Price €1.15
#32 95701-0602008 i

BOLT, FLANGE, 6X20

Price €1.15
#33 95701-0602207 i

BOLT, FLANGE, 6X22

Price €1.34
#35 90651-KV6-003 i

BAND, WIRE, 165MM (BLACK)

Price €9.78
#3 32100-MLP-DB0

HARNESS, WIRE

Price €556.14
#18 38770-MLP-DB2 i

PGM-FI UNIT

Price €619.30
