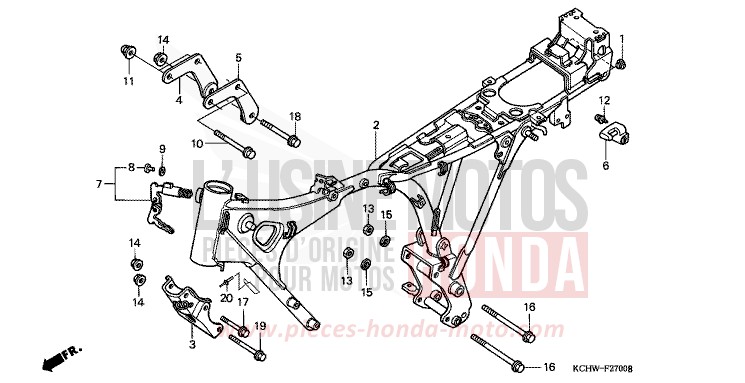

FRAME BODY for CG125 MAGNA RED (R201) from 2001

FRAME BODY for CG125 MAGNA RED (R201) from 2001
Reference
Product name
#1 19902-865-780

GROMMET A, SIDE COVER

Price €3.19
#2 50100-KCH-D00

BODY COMP, FRAME

Contact us
#3 50351-KCH-600

PLATE, FR ENGINE HANGER

Contact us
#4 50353-KCH-780

PLATE, R ENGINE HANGER

Contact us
#5 50354-KCH-780

PLATE, L ENGINE UPPER HANGER

Contact us
#6 50710-GCN-003

HOLDER ASSY, HELMET (HONDA LOCK)

Price €70.73
#7 53600-404-611 i

LOCK COMP, STEERING HANDLE

Price €254.38
#8 53603-051-000 i

RIVET, 41MM

Price €7.91
#9 53604-KEB-620

WASHER, 45MM

Price €2.58
Contact us
#10 90127-KCH-900 i

BOLT, SPECIAL FLANGE, 8X68

Price €7.55
#11 90301-SA0-000 i

NUT, FLANGE CAP, 8MM

Price €8.11
#12 93891-0601007 i

SCREW-WASHER, 6X10

Price €1.00
#13 94030-08070 i

NUT, HEX, 8MM

Price €0.85
#14 94050-08070 i

NUT, FLANGE, 8MM

Price €1.08
#15 94111-08700

WASHER, SPRING, 8MM

Price €0.64
#16 95301-0811007

BOLT, HEX, 8X110

Price €3.25
#17 95801-0805507 i

BOLT, FLANGE, 8X55

Price €1.92
#18 95801-0807007

BOLT, FLANGE, 8X70

Price €2.46
#19 95801-0808507

BOLT, FLANGE, 8X85

Price €3.01
#20 90841-KCH-780

RIVET, POP, 32X92

Contact us
