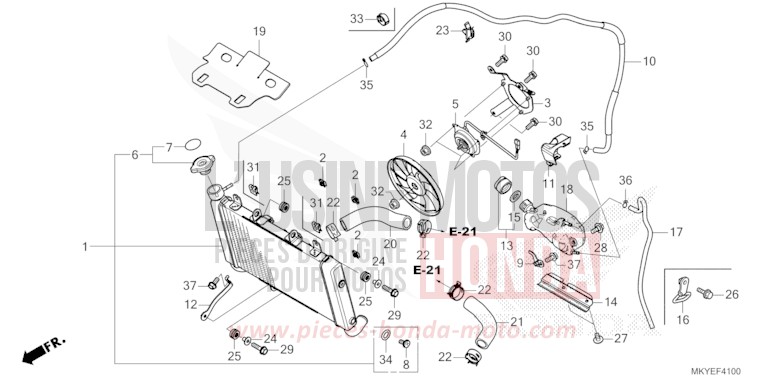

RADIATOR for CBR650R GRAND PRIX RED (R380) from 2024

RADIATOR for CBR650R GRAND PRIX RED (R380) from 2024
Reference
Product name
#1 19010-MKY-DL1

RADIATOR COMP (TRAD)

Price €887.52
#2 19014-KEA-003

NUT, SETTING (6MM)

Price €7.20
#3 19015-MJE-D01

SHROUD COMP

Price €42.72
#4 19020-MFG-D01 i

FAN COMP, COOLING

Price €125.89
#5 19030-MKY-E01

MOTOR ASSY, FAN

Price €188.42
#6 19037-MCA-G61

CAP COMP, RADIATOR (TRAD)

Price €77.52
#7 19046-MCA-G61

LABEL, RADIATOR CAP (TRAD)

Price €14.70
#8 19071-MEC-003

COCK, DRAIN

Price €8.89
#9 19102-MJE-D00

STAY, RESERVE TANK

Price €6.32
#10 19103-MJE-D00

TUBE, RESERVE TANK

Price €24.36
#11 19104-MJE-D00

COVER, RESERVE TANK

Price €9.29
#12 19105-MJE-D00

STAY, RADIATOR LOWER

Price €14.38
#13 19106-GET-000

CAP ASSY, RESERVE TANK

Price €21.38
#14 19106-MJE-DB0

GUARD, RESERVE TANK HEAT

Price €12.60
#15 19107-GET-000

PACKING, RESERVE TANK

Price €6.91
#17 19108-MJE-D00

TUBE, RESERVE TANK OVERFLOW

Price €11.72
#18 19110-MKY-D50

TANK COMP, RADIATOR RESERVE

Price €29.36
#19 19126-MKN-D50

GUARD, RADIATOR HEAT

Price €12.68
#20 19501-MJE-D00

HOSE A, RADIATOR

Price €13.75
#21 19502-MJE-D00

HOSE B, RADIATOR

Price €12.74
#22 19511-R9G-004

CLIP, WATER HOSE

Price €12.92
#23 32161-393-003 i

CLIP, WIRE HARNESS

Price €11.71
#24 61102-KTY-D30

COLLAR, RADIATOR MOUNTING

Price €9.42
#25 61304-415-000

RUBBER, HEADLIGHT CASE MOUNTING

Price €9.37
#27 90106-KRG-000

SCREW, PAN, 6X12

Price €6.52
#28 90111-162-000 i

BOLT, FLANGE, 6MM

Price €7.55
#29 90115-MKN-D50

BOLT, FLANGE, 6X22

Price €2.98
#30 90120-GHB-601

BOLT-WASHER, 6X12

Price €7.55
#32 90315-MK3-003

NUT, SERRATE, 5MM

Price €5.57
#34 91353-MEC-003

O-RING, 98X19

Price €8.14
#35 95002-02100 i

CLIP, TUBE (B10)

Price €1.08
#36 95002-50000 i

CLIP, TUBE (C9)

Price €0.78
#37 95701-0601400 i

BOLT, FLANGE, 6X14

Price €1.15
