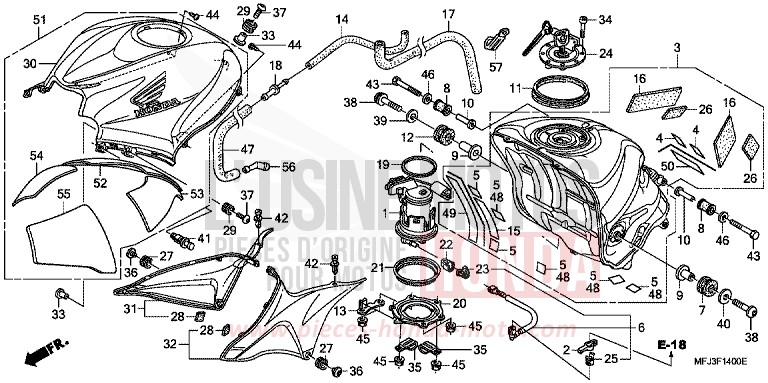

FUEL TANK for CBR600RR ROSS WHITE (NH196) from 2011

FUEL TANK for CBR600RR ROSS WHITE (NH196) from 2011
Reference
Product name
#1 16700-MFJ-D01 i

PUMP ASSY, FUEL

Price €832.90
Contact us
#2 16719-MFJ-D00

DAMPER, CONNECTEUR

Price €7.91
#3 17500-MFJ-D10 i

TANK SET, FUEL

Price €732.07
#6 17526-MFJ-D01

HOSE COMP B, FUEL FEED

Price €127.32
#7 17533-MEL-000

RUBBER, L FR TANK MOUNTING

Price €11.86
#8 17534-MFJ-D00

RUBBER, RR TANK MOUNTING

Price €9.05
#9 17535-MEL-D20

COLLAR, FR TANK SETTING

Price €25.79
#10 17538-MEE-D00

COLLAR, RR TANK SETTING

Price €18.68
#11 17543-MEE-000

SEAL, FUEL TANK

Price €22.57
#12 17545-MEL-000

RUBBER, R FR TANK MOUNTING

Price €13.82
#13 17553-MFJ-D00

GUIDE, BREATHER TUBE

Price €12.01
#14 17555-MFJ-D00

TUBE, BREATHER

Price €22.75
#16 17558-MEE-940

CUSHION, FUEL TANK

Price €29.77
#17 17559-MFJ-A40

TUBE, DRAIN

Price €32.23
#18 17561-MEE-000

CONNECTION, ENTLUEFTUNGS- TUBE

Price €10.28
#19 17574-MFJ-D00

PACKING, FUEL PUMP

Price €37.20
#20 17575-MFJ-D00

PLATE, FUEL PUMP SETTING

Price €23.64
#21 17576-MFJ-D00

SEAL, OUTER

Price €16.32
#22 17580-MFJ-D00

COVER, FUEL CONNECTOR

Price €12.26
#25 17711-S0X-931 i

FIXING (VERT BLEUTE) (TOKAI)

Price €2.99
#24 17620-MCJ-751 i

CAP COMP, FUEL FILLER

Price €311.32
#26 50322-MEC-000

SPONGE, RUBBER

Price €8.38
#27 64535-MFJ-D00

SIDE COVER RUBBER

Price €7.43
#28 77182-KTB-300

RUBBER, ABSTANDSSTUECK

Price €7.43
#29 80101-165-000

RUBBER OF TAMPON OF GUARD-BOUE REAR

Price €9.37
#30 83150-MFJ-N70ZB

SHELTER SET, TOP (WL) TYPE1 (TYPE1 )

Price €1,893.05
#31 83600-MFJ-D00

COVER, R SIDE

Price €45.59
#32 83700-MFJ-D00

COVER, L SIDE

Price €45.59
#33 84706-163-670

BAND OF MOUNTING OF REAR LIGHT

Price €9.68
#34 90074-MT4-000 i

BOLT OF SOCKET, 4X21

Price €5.59
#35 90105-727-000

CLIP, 2X50

Price €3.77
#36 90114-MFJ-D00

SCREW, SPECIAL, 5X6

Price €7.08
#37 90118-MEJ-J00

CYLINDRICAL HEAD SCREW, 6X20

Price €7.08
#38 90128-KL4-000

BOLT FIXATIF OF PINION

Price €11.05
#39 90524-030-000 i

WASHER A OF FIXING SUPPORT OF HANDLEBAR

Price €5.71
#40 90534-750-000

WASHER, 85MM

Price €4.32
#41 90657-SB0-003 i

CLAMP, SPRITZSCHILD

Price €6.68
#42 90683-GR1-003 i

CLAMP, KOERPERDECKEL

Price €6.80
#43 92201-060400A

BOLT, HEX, 6X40

Price €1.25
#44 93903-24280

TAPPING BOLT, 4X10

Price €0.64
#45 94050-06080 i

FLANGE NUT, 6MM

Price €1.20
#46 94103-06000 i

WASHER PLATE, 6MM

Price €0.85
#47 17557-MFJ-A40

TUBE, 8X590

Price €34.55
#48 17528-MR4-900

STRIPE, BOUCLIER TANK

Price €6.97
#49 17554-MFJ-D10

FILM A, PROTECTOR

Price €28.06
#50 17557-MFJ-D10

FILM B, PROTECTOR

Price €14.84
#57 91410-679-000

PINCE, 2X60

Price €12.38
