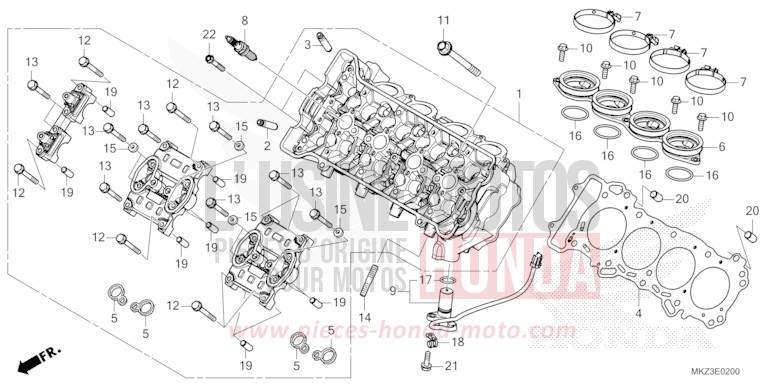

CYLINDER HEAD for CBR600RR GRAND PRIX RED (R380) from 2024

CYLINDER HEAD for CBR600RR GRAND PRIX RED (R380) from 2024
Reference
Product name
#1 12010-MKZ-J00 i

HEAD ASSY, CYLINDER

Price €3,236.22
#2 12204-MBW-305

GUIDE OF INTAKE VALVE (O.S.)

Price €33.25
#3 12204-MFJ-305

GUIDE, IN VALVE (OS)

Price €39.04
#4 12251-MFJ-D01

GASKET, CYLINDER HEAD

Price €136.13
#5 12395-MBW-003 i

GASKET OF HOLE OF PLUG

Price €7.68
#6 16210-MKZ-J00

INSULATOR COMP, THROTTLE BODY

Price €211.90
#7 16217-MKZ-J00

BAND, INSULATOR

Price €25.75
#8 31917-K64-NA1 i

PLUG, SPARK (SILMAR9C9) (NGK)

Price €32.48
#9 36140-MKZ-J31

PULSER ASSY, CAM

Price €88.36
#10 90004-GHB-630 i

FLANGE BOLT, 6X16 (NSHF)

Price €5.21
#11 90007-MBW-000

WASHER A BOLT, 9X90

Price €12.97
#12 90017-MA6-000

FLANGE BOLT, 6X45.5

Price €6.46
#13 90019-MA6-000

FLANGE BOLT, 6X39.5

Price €6.46
#14 90035-MM5-000

STUD, 8X24

Price €7.31
#15 90463-ML7-000 i

WASHER SEALING, 6.5MM

Price €4.62
#16 91301-MFJ-D00

O-RING, 40X25

Price €12.04
#17 91309-PX4-003

O-RING, 16X21 (NOK)

Price €4.96
#18 91410-679-000

PINCE, 2X60

Price €12.38
#19 94301-08200 i

STUD, 8X20

Price €2.05
#20 94301-10160 i

DOWEL PIN, 10X16

Price €2.38
#21 95701-0601807 i

FLANGE BOLT, 6X18

Price €0.96
#22 96001-0603500 i

FLANGE BOLT, 6X35

Price €1.50
#18 91410-KPE-C20

CLIP, 2X60

Price €11.84
