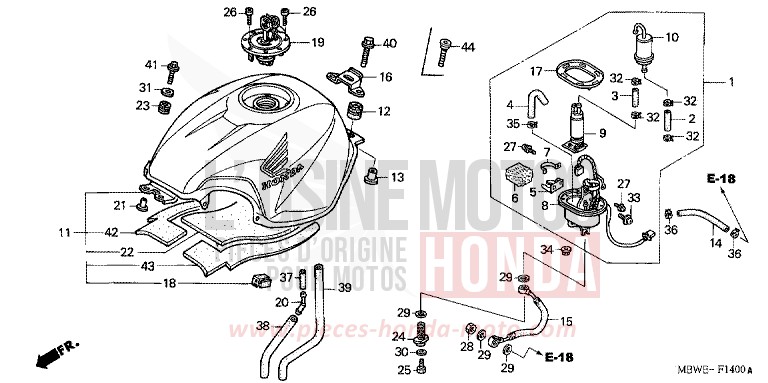

FUEL TANK for CBR600F Special Edition ROSS WHITE (NH196) from 2002

FUEL TANK for CBR600F Special Edition ROSS WHITE (NH196) from 2002
Reference
Product name
#1 16700-MBW-A10 i

PUMP ASSY, FUEL

Price €832.90
#1 16700-MBW-A11 i

PUMP ASSY, FUEL

Price €832.90
#2 16711-MAT-D00

HOSE A, PUMP

Price €14.06
#3 16712-MAT-D01

HOSE B, PUMP

Price €11.99
#4 16713-MBG-010

TUBE, FUEL PUMP RETURN

Price €8.59
#5 16714-MAT-D00

STAY B COMP

Contact us
#6 16714-MBG-000

FILTER, FUEL RETURN

Price €25.28
#7 16717-MAT-D00

BAND B

Price €13.00
#8 16720-MBW-A10

STAY COMP, FUEL PUMP

Price €200.90
Contact us
#9 16730-MCJ-000

PUMP SUB ASSY, FUEL

Price €761.95
Contact us
#10 16900-MBG-013

FILTER COMP, FUEL

Price €170.84
#11 17506-MBW-A20ZD

TANK SET, FUEL (WL) TYPE4 (TYPE4 )

Price €876.11
#12 17508-MBW-000

RUBBER, TANK MOUNTING

Price €13.68
#13 17509-MBW-D20

COLLAR, TANK SET

Price €16.08
#14 17525-MCC-000 i

HOSE, FUEL RETURN

Price €32.10
Contact us
#15 17527-MBW-D20

HOSE COMP, FUEL FEED

Price €225.40
#16 17530-MBW-000

STAY, SEAT FR

Price €31.48
#17 17574-MBW-D20

PACKING, BASE

Price €20.47
#18 17611-ML7-000

CUSHION, FUEL TANK

Price €12.78
#19 17620-MAS-E02 i

CAP COMP, FUEL FILLER

Price €334.55
#20 19103-ML7-000 i

JOINT, TUBE

Price €10.94
#21 61104-422-000 i

COLLAR, SETTING

Price €11.51
#22 17570-MW4-300

MAT, FUEL TANK

Price €51.16
#23 84703-425-000 i

RUBBER, TAILLIGHT MOUNTING

Price €10.22
#24 90008-PP4-E02

BOLT, BANJO, 12MM

Price €16.86
#25 90009-PP4-E01

BOLT, SEALING, 6MM

Price €7.12
#26 90074-MT4-000 i

BOLT, SOCKET, 4X21

Price €5.59
#27 90105-MBG-000

SCREW-WASHER, LOCK, 4X8

Price €3.16
#28 90201-PD1-000 i

NUT A, SEALING, 12MM

Price €5.69
#29 90428-PD6-003 i

WASHER, SEALING, 12MM

Price €5.69
#30 90430-PD6-003 i

WASHER, SEALING, 6MM

Price €4.62
#31 90525-428-900 i

WASHER, PLAIN, 6MM

Price €6.26
#32 91405-PD1-004

CLAMP, TUBE (D12)

Price €10.20
#33 93893-0501208 i

SCREW-WASHER, 5X12

Price €1.08
#34 94050-06080 i

NUT, FLANGE, 6MM

Price €1.20
#35 95002-4085004

CLAMP, TUBE (D85)

Price €1.36
#36 95002-4105008

CLAMP, TUBE (D105)

Price €1.50
#37 95005-4504020

TUBE, 45X40 (95005-45001-20M)

Contact us
#38 95005-8065020

TUBE, 8X650 (95005-80001-20M)

Contact us
#39 95005-8076050

TUBE, 8X760 (95005-80001-50M)

Contact us
#41 96001-0602807 i

BOLT, FLANGE, 6X28

Price €1.50
#42 17514-MBW-300

MAT, FUEL TANK R SIDE

Price €37.28
Contact us
#43 17515-MBW-300

MAT, FUEL TANK L SIDE

Price €37.28
#44 90102-MBW-A10

BOLT, SOCKET, 8X46

Price €13.75
