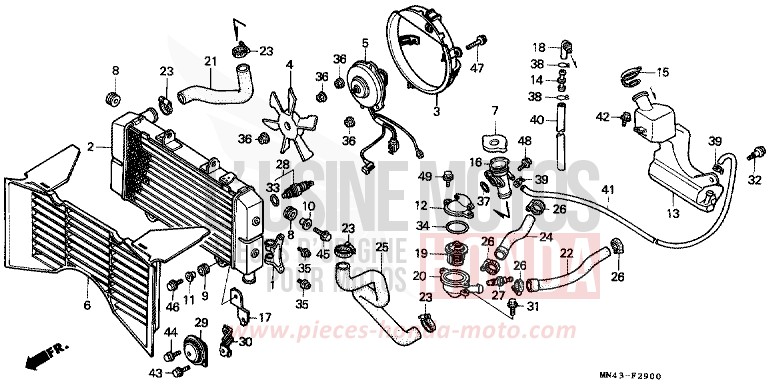

RADIATOR for CBR600F PEARL CRYSTAL WHITE (NH193H) from 1988

RADIATOR for CBR600F PEARL CRYSTAL WHITE (NH193H) from 1988
Reference
Product name
#1 15518-KT8-710

CLAMP, OIL HOSE

Contact us
#2 19010-MN4-000

RADIATOR COMP

Contact us
#3 19020-MN4-003

SHROUD COMP (TOYO)

Contact us
#4 19025-MN4-003

FAN COMP, COOLING (TOYO)

Price €80.92
#5 19030-MN4-004

MOTOR, FAN

Contact us
#6 19032-MN4-000

GRILLE, RADIATOR

Contact us
#7 19037-KA4-701

CAP COMP

Price €62.20
#8 19051-KA3-830

RUBBER, RADIATOR MOUNTING

Price €9.26
#9 19052-HA2-000

RUBBER B, RADIATOR MOUNTING

Price €5.14
Contact us
#10 19052-KA3-830

COLLAR, RADIATOR MOUNTING

Price €8.21
#11 19056-HA2-000

COLLAR B, RADIATOR MOUNTING

Price €6.85
Contact us
#12 19060-KT8-000

COVER, THERMOSTAT

Contact us
#13 19101-MN4-000

TANK, RADIATOR RESERVE

Contact us
#14 19102-KT8-000

JOINT, TUBE

Price €9.01
#15 19104-MB0-700

CAP, RESERVE TANK

Price €13.64
#16 19106-KT8-711

NECK, FILLER

Contact us
#17 19115-MN4-770

STAY, RADIATOR

Contact us
#18 19205-KT8-000

TUBE, OVERFLOW

Contact us
#19 19300-ML7-003

THERMOSTAT ASSY

Price €93.55
#20 19311-KT8-000

CASE, THERMOSTAT

Contact us
#21 19501-MN4-000

HOSE, RADIATOR UPPER

Contact us
#22 19502-MN4-000

HOSE, L WATER

Contact us
#23 19503-ML0-003

CLAMP, RADIATOR HOSE

Price €14.05
#24 19503-MN4-000

HOSE, R WATER

Contact us
#25 19505-MN4-000

HOSE, RADIATOR LOWER

Price €27.92
Contact us
#26 19517-MB6-000

CLAMP B, WATER HOSE

Price €8.94
Contact us
#27 37750-PC1-004

THERMO UNIT (DENSO)

Price €92.92
#28 37760-ML7-003

SWITCH ASSY, THERMO

Price €140.83
#29 38120-MN4-601

HORN COMP (LOW) (MITSUBA)

Contact us
#30 50359-MN4-780

STAY, HORN

Contact us
#31 90111-MN4-000

BOLT, SPECIAL, 6MM

Price €5.82
#32 90111-162-000

BOLT, FLANGE, 6MM

Price €5.76
#33 91307-611-000

O-RING, 135X14

Price €4.50
#34 91311-KE8-000

O-RING, 475X2

Price €5.41
#35 93891-0401007

SCREW-WASHER, 4X10

Price €0.86
#36 94050-04080

NUT, FLANGE, 4MM

Price €0.86
#37 94608-30000

O-RING, 23X24

Price €1.78
#38 95002-02130

CLIP, TUBE (B125)

Price €1.06
#39 95002-4125008

CLAMP, TUBE (D125)

Price €1.48
#40 95005-7540020

TUBE, 73X400 (95005-75001-20M)

Contact us
#41 95005-7580020

TUBE, 73X800 (95005-75001-20M)

Price €26.10
#42 95700-0801207

BOLT, FLANGE, 8X12

Price €1.15
#43 95701-0600800

BOLT, FLANGE, 6X8

Price €0.97
#44 95801-0601400

BOLT, FLANGE, 6X14

Price €1.13
#45 95801-0602200

BOLT, FLANGE, 6X22

Price €1.39
#46 95900-0602507

BOLT, FLANGE, 6X25

Price €1.06
#47 96000-0601000

BOLT, FLANGE, 6X10

Price €1.39
#48 96000-0601607

BOLT, FLANGE, 6X16

Price €1.39
#49 96000-0602007

BOLT, FLANGE, 6X20

Price €1.39
