CARBURETOR (ASSY.) 🏍️ CBR600F
GASKET KIT A 🏍️ CBR600F

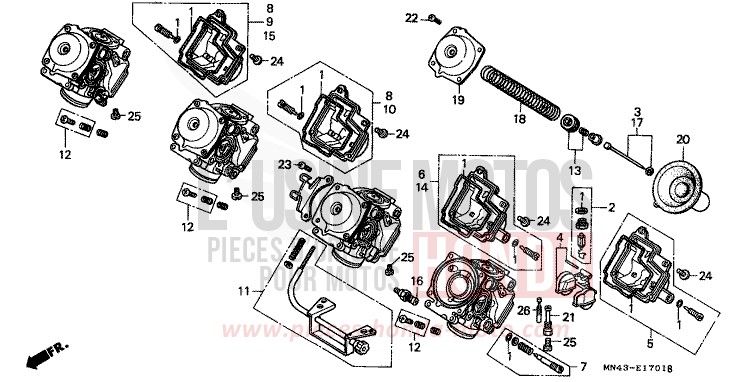

CARBURETOR (COMPONENT PARTS) for CBR600F FIGHTING RED (R134E) from 1989

CARBURETOR (COMPONENT PARTS) for CBR600F FIGHTING RED (R134E) from 1989
Reference
Product name
#1 16010-MN4-003 i

GASKET SET

Price €41.26
#2 16011-MT6-601

SEAT SET, VALVE

Contact us
#3 16012-MT6-601

NEEDLE SET, JET

Contact us
#4 16013-KT7-003

FLOAT SET

Price €66.91
Contact us
#5 16015-MN4-013

CHAMBER SET, FLOAT

Contact us
#6 16015-MT6-601

CHAMBER SET, FLOAT

Contact us
#7 16016-MN4-601 i

SCREW SET

Price €41.26
#8 16023-MN4-013

CHAMBER SET, FLOAT

Contact us
#9 16023-MT6-601

CHAMBER SET, FLOAT

Contact us
#11 16028-MN4-013

SCREW SET

Contact us
#12 16029-MN4-003 i

SET OF SCREW

Price €39.22
#13 16037-KM3-751 i

SET OF PLATE OF VALVE

Price €39.60
#16 16046-MT6-601

VALVE SET, STARTER

Contact us
#18 16050-ML7-004

SPRING, COMPRESSION COIL (CARBURETOR NO)

Contact us
#18 16050-MT6-601

SPRING, COMPRESSION COIL

Contact us
#19 16107-MN4-003

TOP

Contact us
#20 16111-MN4-003

PISTON COMP, VACUUM

Contact us
#21 16165-MT6-601

HOLDER, NEEDLE JET

Contact us
#22 93500-040100A i

CYLINDRICAL HEAD SCREW, 4X10

Price €0.78
#23 93500-040120A i

VIS A TETE CYLINDRIQUE, 4X12

Price €0.78
#24 93892-0401600 i

SCREW A HEAD A WASHER, 4X16

Price €0.85
#25 99101-3931080 i

JET, MAIN, 108

Price €11.08
#26 99103-4370350 i

JET, SLOW, 35 (CARBURETOR NO)

Price €13.45
