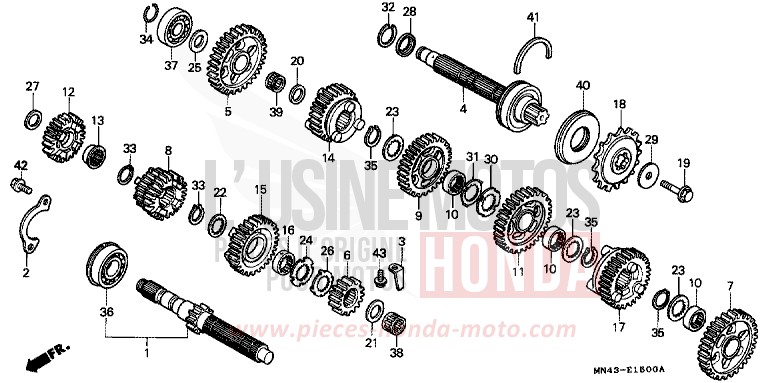

TRANSMISSION for CBR600F FIGHTING RED (R134E) from 1989

TRANSMISSION for CBR600F FIGHTING RED (R134E) from 1989
Reference
Product name
#1 23210-MN4-000

MAINSHAFT COMP

Contact us
#2 23213-MN4-000

PLATE, BEARING SETTING

Contact us
#3 23214-MN4-000

PLATE B, BEARING SETTING

Contact us
#4 23220-MN4-000

COUNTERSHAFT COMP

Contact us
#5 23421-MN4-000

GEAR, COUNTERSHAFT LOW (42T)

Contact us
#6 23431-MN4-020

GEAR, MAINSHAFT SECOND (17T)

Contact us
#7 23441-MN4-000

GEAR, COUNTERSHAFT SECOND (38T)

Contact us
#8 23451-MT6-600

GEAR, MAINSHAFT THIRD &amp FOURTH (20T/22T)

Contact us
#9 23461-MN4-000

GEAR, COUNTERSHAFT THIRD (36T)

Contact us
#10 23462-MN4-000

COLLAR, SPLINE, 28X10

Contact us
#11 23481-MN4-000

GEAR, COUNTERSHAFT FOURTH (33T)

Contact us
#12 23491-MT6-600

GEAR, MAINSHAFT FIFTH (22T)

Contact us
#13 23495-MN4-000

COLLAR, 25X28X11

Contact us
#14 23501-MN4-010

GEAR, COUNTERSHAFT FIFTH (28T)

Contact us
#15 23511-MT6-600

GEAR, MAINSHAFT SIXTH (23T)

Contact us
#16 23512-MN4-000

COLLAR, SPLINE, 25X12

Contact us
#17 23521-MN4-020

GEAR, COUNTERSHAFT SIXTH (26T)

Contact us
#18 23801-MN4-000

SPROCKET, DRIVE (15T)

Price €73.28
Contact us
#19 90037-422-003

BOLT, SPECIAL, 10MM

Price €10.03
#20 90401-KE7-000

WASHER, THRUST, 222MM

Price €8.48
#21 90403-MN4-000

WASHER, THRUST, 17X315

Contact us
#22 90451-MN4-000

WASHER, SPLINE, 25X31X15

Contact us
#23 90451-MM5-000

WASHER, SPLINE, 28X34X15

Price €5.75
Contact us
#24 90453-MN4-000

WASHER, SPLINE, 25X12

Contact us
#25 90454-428-000

WASHER, THRUST, 20MM

Price €6.70
#26 90455-MN4-000

WASHER, LOCK, 25MM

Contact us
#27 90456-MA6-000

WASHER, THRUST, 25MM

Price €3.02
#28 90457-MN4-000

WASHER, SPECIAL SPLINE

Contact us
#29 90459-438-000

WASHER, 102MM

Price €7.37
#30 90464-MM5-000

WASHER, SPLINE, 28X16

Contact us
#31 90465-MM5-000

WASHER, LOCK, 28MM

Contact us
#32 90601-MN4-000

CIRCLIP, EXTERNAL, 28MM

Contact us
#33 90601-107-000

CIRCLIP, 25MM

Price €5.35
#34 90602-MN4-000

CLIP, 20MM

Contact us
#35 90603-MN4-000

CIRCLIP, 28MM

Price €7.90
#36 91002-MN4-003

BEARING, RADIAL BALL, 6305 (NTN)

Contact us
#37 91004-MN4-003

BEARING, RADIAL BALL, 6004 (NTN)

Contact us
#37 91004-MN4-004

BEARING, RADIAL BALL, 6004 (KOYO)

Contact us
#38 91022-MN4-003

BEARING, NEEDLE, 17X27X148 (TOYO)

Price €27.85
#39 91025-MN4-003

BEARING, NEEDLE, 22X26X11 (NTN)

Price €30.34
Contact us
#40 91216-MN4-003

OIL SEAL, 37X68X75 (ARAI)

Contact us
#41 95015-26800

RING, BEARING SETTING, 68MM

Contact us
#42 95701-0601600

BOLT, FLANGE, 6X16

Price €1.15
#43 96001-0601400

BOLT, FLANGE, 6X14

Price €1.32
