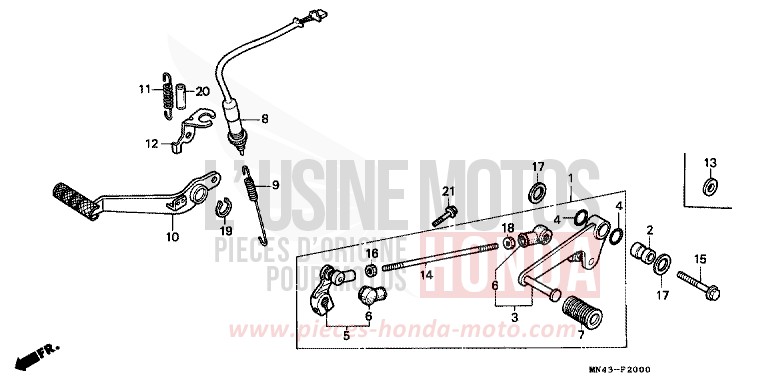

BRAKE PEDAL/CHANGE PEDAL for CBR600F FIGHTING RED (R134A) from 1989

BRAKE PEDAL/CHANGE PEDAL for CBR600F FIGHTING RED (R134A) from 1989
Reference
Product name
#1 24700-MT6-000

PEDAL ASSY, CHANGE

Contact us
#2 24705-MT6-000

COLLAR, PIVOT

Contact us
#3 24706-MT6-000

PEDAL COMP, CHANGE

Contact us
#4 24706-MK3-770

RUBBER, DUST SEAL

Price €8.11
#5 24710-MN4-000

ARM COMP, CHANGE

Contact us
#6 24724-422-000

COVER, DUST

Price €18.52
#7 24781-KR3-770

RUBBER, GEAR CHANGE PEDAL

Price €9.32
#8 35350-MF2-881

SWITCH ASSY, RR STOP

Price €36.25
#9 35357-KT8-000

SPRING, STOP SWITCH

Price €6.38
#10 46500-MN4-770

PEDAL, RR BRAKE

Contact us
#11 46514-MN4-000

SPRING, BRAKE PEDAL RETURN

Contact us
#12 50352-MT6-000

BRACKET, RR BRAKE STOP SWITCH

Contact us
#14 90065-MN4-000

BOLT, TIE ROD

Price €5.23
#15 95801-0805000

BOLT, FLANGE, 8X50

Price €1.78
#16 90201-700-000

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

Price €0.85
#17 90514-921-000

WASHER, 8MM

Price €1.82
#18 94002-060200S

NUT, HEX, 6MM

Price €0.97
#19 94511-15000

CIRCLIP, EXTERNAL, 15MM

Price €0.91
#20 95003-4300420

TUBE, VINYL, 13X15X40 (95003-43001-10M)

Price €1.27
Contact us
#21 95801-0602000

BOLT, FLANGE, 6X20

Price €1.06
