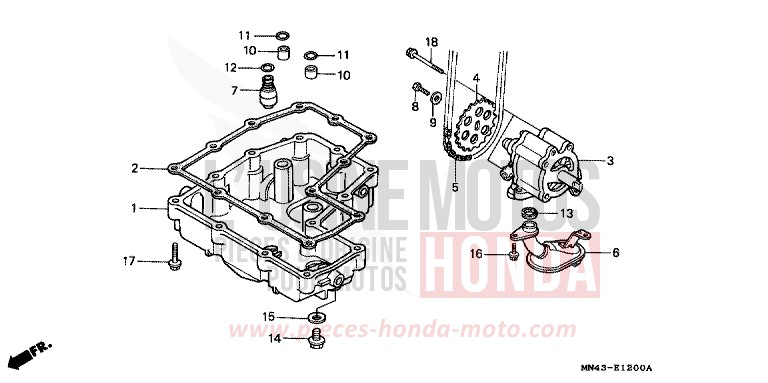

OIL PAN/OIL PUMP for CBR600F FIGHTING RED (R134A) from 1988

OIL PAN/OIL PUMP for CBR600F FIGHTING RED (R134A) from 1988
Reference
Product name
#1 11210-MN4-000

PAN, OIL

Contact us
#2 11398-MN4-000

GASKET, OIL PAN

Contact us
#3 15100-MN4-000

PUMP ASSY, OIL

Contact us
#4 15134-KT8-000

SPROCKET, OIL PUMP DRIVEN (23T)

Price €20.86
Contact us
#5 15141-KT8-003 i

CHAIN, OIL PUMP DRIVE (25H-62)

Price €39.14
Contact us
#6 15153-KT8-000

STRAINER COMP, OIL

Price €53.39
Contact us
#7 15220-KT8-000

VALVE ASSY, RELIEF

Contact us
#8 90021-KE8-010

BOLT HEX., 6X16

Price €7.01
Contact us
#9 90488-MB0-000

WASHER, 6X2.3

Price €7.61
#10 91105-MA6-000

PIN, GUIDE, 13X85

Contact us
#11 91302-MB6-830 i

O-RING, 13X30

Price €5.58
#12 91313-MB0-003 i

O-RING, 14.7X2.2 (ARAI)

Price €9.56
#13 91315-KT8-003 i

O-RING, 17X3 (ARAI)

Price €7.68
Contact us
#13 91315-KT8-004 i

O-RING, 17X3 (NOK)

Price €7.68
Contact us
#14 92800-12000 i

DRAIN BOLT, 12MM

Price €2.70
#15 94109-12000 i

WASHER OF PLUG OF DRAIN, 12MM

Price €1.78
#16 95701-0601600 i

FLANGE BOLT, 6X16

Price €1.18
#17 95701-0602800 i

FLANGE BOLT, 6X28

Price €1.25
#18 95701-0608500 i

BOLT, FLANGE, 6X85

Price €2.62
