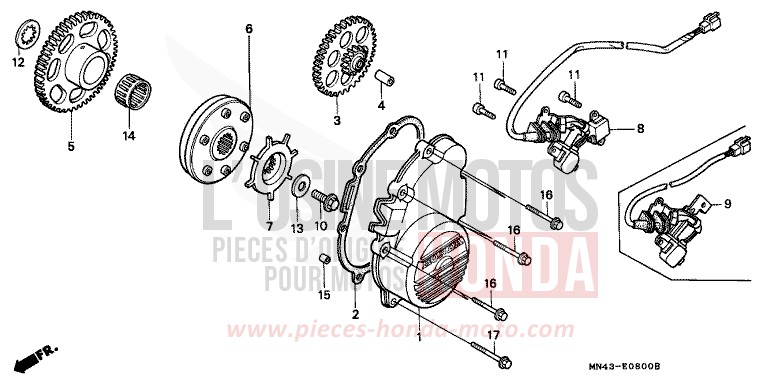

STARTING CLUTCH for CBR600F FIGHTING RED (R134A) from 1988

STARTING CLUTCH for CBR600F FIGHTING RED (R134A) from 1988
Reference
Product name
#1 11631-KT8-000

COVER, STARTER

Contact us
#2 11691-MN4-000

GASKET, STARTER COVER

Price €11.66
#3 28101-MN4-000

GEAR COMP, STARTER REDUCTION (15T/81T)

Contact us
#4 28102-ME9-000

PIN, 10X44

Price €12.94
#5 28110-MN4-000

GEAR COMP, STARTER CLUTCH (47T)

Contact us
#6 28120-MN4-003

OUTER ASSY, STARTING CLUTCH (BORG WARNER)

Contact us
#7 30291-KT8-000

ROTOR, PULSE

Contact us
#8 30300-MN4-003

GENERATOR ASSY, PULSE (TOYO)

Contact us
#10 90003-MN4-000

BOLT, FLANGE, 10X35

Price €8.70
#11 90049-KT7-000

BOLT, SOCKET, 5X12

Price €4.99
#12 90401-KT7-000

WASHER, SPLINE, 20MM

Contact us
#13 90405-ML0-000

WASHER, 10X25X4

Price €6.96
#14 91022-KE8-003

BEARING, NEEDLE, 26X30X17 (NTN)

Contact us
#15 94301-08140

DOWEL PIN, 8X14

Price €2.02
#16 96001-0602800

BOLT, FLANGE, 6X28

Price €1.48
#17 96001-0603500

BOLT, FLANGE, 6X35

Price €1.48
