THERMOSTAT 🏍️ CBR500R ABS
GASKET KIT A 🏍️ CBR500R ABS

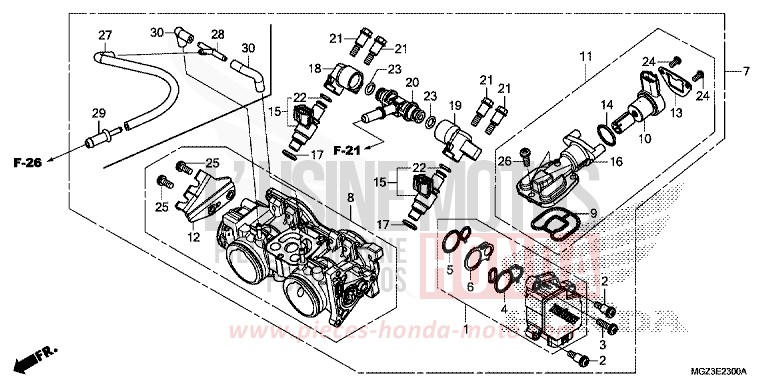

THROTTLE BODY for CBR500R ABS SEAL SILVER METALLIC (NHA14) from 2013

THROTTLE BODY for CBR500R ABS SEAL SILVER METALLIC (NHA14) from 2013
Reference
Product name
#1 16060-MGZ-D01

ASSY. OF SENSOR

Price €248.70
#2 16081-KPH-701 i

SCREW OF CLAMP 5X8.7

Price €7.08
#3 16082-KPH-701 i

SCREW OF CLAMP 5X17

Price €7.08
#4 16083-MGZ-D01

O-RING, SENSOR

Price €36.72
#5 16084-MGZ-D01

O-RING, SENSOR

Price €34.39
#6 16085-MGZ-D01

PLATE

Price €44.39
#7 16400-MGZ-D02 i

ASSY. BODY OF PAPILLON (GQBJA A)

Price €2,166.44
#8 16410-MGZ-D02 i

SET OF BODY

Price €1,188.06
#9 16428-MGZ-D01

O-RING, VALVE OF CONTROL INJECTION AIR

Price €37.08
#10 16430-MFJ-D01

ASSY. ENGINE

Price €284.88
#11 16430-MGZ-D01 i

ASSY. CLAPET, CONTROL AIR RALENTI

Price €290.02
#12 16432-MGZ-D01

SUPPORT OF CABLE

Price €62.32
#13 16433-MEW-921

PLATE, CLAPET OF CONTROL D' AIR OF RALENTI

Price €24.89
#14 16435-MFJ-D01

O-RING, 17.8X1.9

Price €7.34
#15 16450-MFJ-D01 i

ASSY. INJECTEUR FUEL

Price €346.61
#16 16451-MGZ-D01

COMP. BODY, CLAPET OF CONTROL AIR OF RALENTI

Price €165.59
#17 16472-MCW-000

DICHTRING, INJEKTOR

Price €7.13
#18 16610-MGZ-D01

PIPE FUEL (A)

Price €43.42
#19 16620-MGZ-D01

PIPE FUEL (B)

Price €43.42
#20 16630-MFJ-D00

CONNECTOR EN T, FUEL

Price €54.25
#21 90021-MGZ-D02 i

BOLT, EPAULE

Price €6.58
#22 91301-P7A-004

O-RING, 78X19

Price €5.41
#23 91301-PLC-000

O-RING, 7.47X3.6

Price €5.29
#24 93500-040081H

CYLINDRICAL HEAD SCREW, 4X8

Price €0.78
#25 93892-0501218 i

SCREW A HEAD A WASHER, 5X12

Price €1.34
#26 93892-0501418 i

SCREW A HEAD A WASHER, 5X14

Price €0.88
