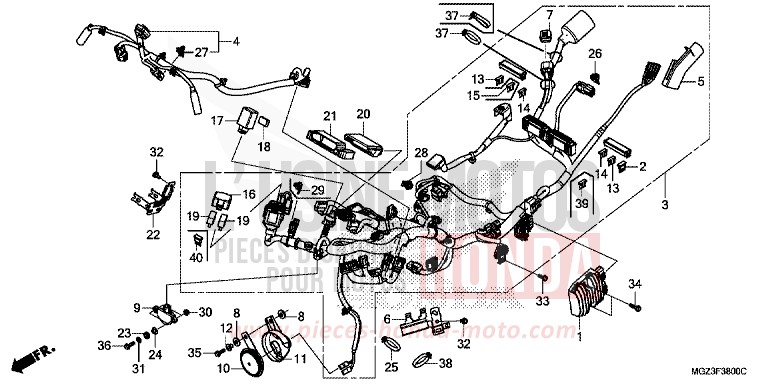

WIRE HARNESS for CBR500R ABS PEARL HIMALAYAS WHITE (NHA87) from 2013

WIRE HARNESS for CBR500R ABS PEARL HIMALAYAS WHITE (NHA87) from 2013
Reference
Product name
#1 31600-MGZ-J01

RECTIFIER ASSY, REGULATE

Price €422.24
#2 31730-MAS-601

DIODE ASSY, THREE WAY (SUMITOMO)

Price €48.62
#3 32100-MGZ-D11

HARNESS, WIRE

Price €516.77
#4 32103-MGZ-J00

SUB HARNESS, FR

Price €236.20
#5 32109-MGZ-J41

SUSPENSION, COUPLER

Price €48.76
#6 32206-MGZ-J00

STAY, COUPLER

Price €12.98
#7 32606-GEV-761

CAP, DUMMY (4P) (RED)

Price €10.15
#8 33714-KL3-620

RUBBER, TAILLIGHT BRACKET

Price €6.62
#9 35160-MGS-D31

SENSOR ASSY, BANK ANGLE

Price €328.60
#10 38110-MGZ-J01

HORN COMP (HIGH)

Price €68.24
#11 38111-MGZ-J00

GUARD, HORN HEAT

Price €32.60
#12 38117-MGZ-J00

COLLAR, HORN SETTING

Price €6.52
#13 38221-SNA-A31

FUSE, BLADE (75A)

Price €5.34
#14 38221-SNA-A51

FUSE, BLADE (15A)

Price €5.83
#15 38221-SNA-A81

FUSE, BLADE (30A)

Price €5.36
#16 38281-MGZ-J01

COVER, RELAY BOX

Price €15.59
#17 38301-MEW-921

RELAY COMP, WINKER (MITSUBA)

Price €81.80
#18 38306-KK4-000

SUSPENSION, WINKER RELAY (MITSUBA)

Price €8.46
#19 38501-MEL-003

RELAY ASSY, POWER (MICRO ISO 4P)

Price €20.95
#20 38770-MGZ-D03

PGM-FI UNIT

Price €1,185.48
#21 38774-MGZ-J00

CUSHION, PGM-FI UNIT

Price €7.79
#22 50194-MGZ-J00

STAY, RELAY BOX

Price €14.74
#23 64535-MFJ-D00

RUBBER, SIDE COVER

Price €5.56
#24 90129-MGZ-J00

COLLAR, BANK ANGLE SENSOR

Price €3.17
#38 90651-KV6-003

BAND, WIRE, 165MM (BLACK)

Price €7.72
#26 91535-TA0-003

CLIP, COUPLER (DARK BROWN)

Price €8.64
#27 91565-S3Y-003

CLIP, COUPLER (GRAY)

Price €5.77
#29 91565-SEL-003

CLIP, COUPLER (BLACK)

Price €4.73
#30 94050-06080

NUT, FLANGE, 6MM

Price €1.18
#31 94103-06800

WASHER, PLAIN, 6MM

Price €0.77
#32 95701-0601000

BOLT, FLANGE, 6X10

Price €1.13
#33 95701-0601408

BOLT, FLANGE, 6X14

Price €1.13
#34 95701-0602000

BOLT, FLANGE, 6X20

Price €1.06
#35 95701-0602007

BOLT, FLANGE, 6X20

Price €1.13
#36 95701-0602208

BOLT, FLANGE, 6X22

Price €1.22
#37 90652-KT1-771

BAND, WIRE (BLACK)

Price €6.10
