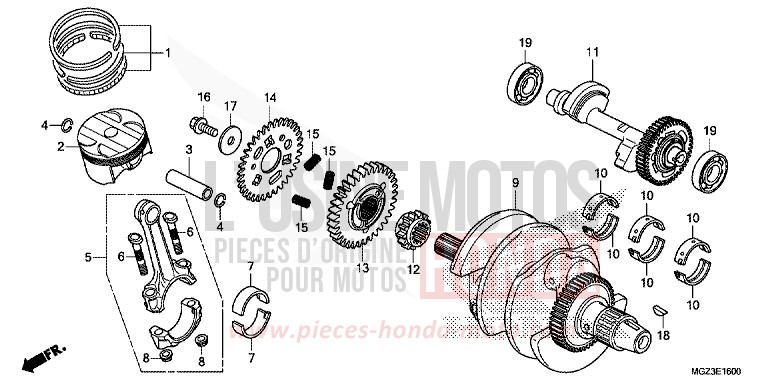

CRANK SHAFT/PISTON for CBR500R ABS PEARL HIMALAYAS WHITE (NHA87) from 2013

CRANK SHAFT/PISTON for CBR500R ABS PEARL HIMALAYAS WHITE (NHA87) from 2013
Reference
Product name
#1 13011-MEE-305

RING SET, PISTON (STD)

Price €95.70
#1 13021-MEE-305

RING SET, PISTON (025)

Price €71.51
#2 13101-MGZ-D00

PISTON (STD)

Price €103.73
#2 13102-MGZ-305

PISTON (025)

Price €72.31
#3 13111-MFG-D00

PIN, PISTON

Price €39.65
#4 13115-MGZ-J00

CLIP, PISTON PIN, 16MM

Price €3.41
#5 13210-MGZ-D00

ROD ASSY, CONNECTING

Price €273.28
#6 13213-ML7-020

BOLT, CONNECTING ROD

Price €10.00
#7 13214-MGZ-J01

BEARING A, CONNECTING ROD (BLUE)

Price €38.28
#7 13215-MGZ-J01

BEARING B, CONNECTING ROD (BLACK)

Price €34.76
#7 13216-MGZ-J01

BEARING C, CONNECTING ROD (BROWN)

Price €35.39
#7 13217-MGZ-J01

BEARING D, CONNECTING ROD (GREEN)

Price €34.50
#7 13218-MGZ-J01

BEARING E, CONNECTING ROD (YELLOW)

Price €38.28
#8 13215-ML7-000

NUT, CONNECTING ROD

Price €9.72
#9 13300-MGZ-D01

CRANKSHAFT COMP

Price €1,258.68
#10 13313-MW0-003

BEARING A, CRANKSHAFT (BLACK)

Price €26.93
#10 13314-MW0-003

BEARING B, CRANKSHAFT (BROWN)

Price €27.70
#10 13315-MW0-003

BEARING C, CRANKSHAFT (GREEN)

Price €27.96
#10 13316-MW0-003

BEARING D, CRANKSHAFT (YELLOW)

Price €29.15
#10 13317-MW0-003

BEARING E, CRANKSHAFT (PINK)

Price €27.68
#11 13420-MGZ-D01

SHAFT COMP, BALANCER (40T)

Price €951.58
#12 14311-MGZ-J00

SPROCKET, TIMING (17T)

Price €22.02
#13 23113-MGZ-J00

GEAR, PRIMARY DRIVE (34T)

Price €235.08
#14 23114-MGZ-J00

SUB GEAR, PRIMARY (34T)

Price €55.86
#15 23115-MV1-300

SPRING, PRIMARY DRIVE GEAR

Price €2.16
#16 90013-MGZ-J00

BOLT, SPECIAL, 10X25

Price €3.74
#17 90405-MGZ-J00

WASHER, 105X40

Price €11.16
#18 90742-KYJ-900

KEY, WOODRUFF, 25X18

Price €5.51
#19 91001-MGZ-J00

BEARING, SPECIAL RADIAL BALL, 6204

Price €39.08
