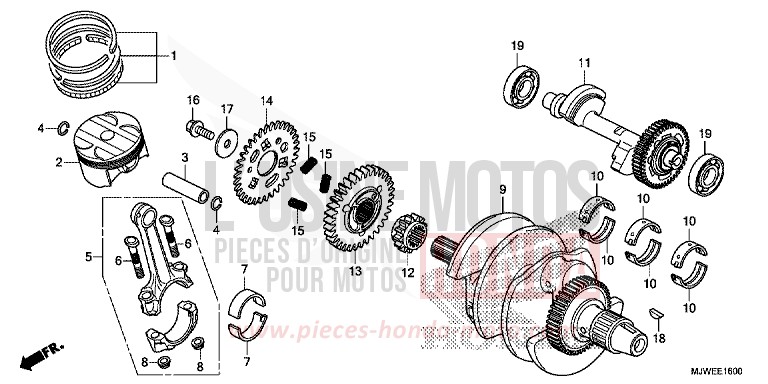

CRANKSHAFT/PISTON for CBR500R ROSS WHITE (NH196) from 2016

CRANKSHAFT/PISTON for CBR500R ROSS WHITE (NH196) from 2016
Reference
Product name
#1 13011-MEE-305

SET OF SEGMENTS (STD.)

Price €107.30
#1 13021-MEE-305

SET OF SEGMENTS (0.25)

Price €96.43
#2 13101-MGZ-D00

PISTON

Price €42.38
#2 13102-MGZ-305

PISTON

Price €90.58
#3 13111-MFG-D00

AXE, PISTON

Price €36.26
#4 13115-MGZ-J00

PISTON PIN CLIP, 16MM

Price €4.90
#5 13210-MGZ-D00

ASSY. CONNECTING ROD

Price €114.89
#6 13213-ML7-020 i

BOLT OF CONNECTING ROD

Price €11.96
#7 13214-MGZ-J01

CONNECTING ROD BEARING A (BLUE)

Price €32.82
#7 13215-MGZ-J01

CONNECTING ROD BEARING B (BLACK)

Price €32.82
#7 13216-MGZ-J01

CONNECTING ROD BEARING C (BROWN)

Price €32.82
#7 13217-MGZ-J01

CONNECTING ROD BEARING D (GREEN)

Price €32.82
#7 13218-MGZ-J01

CONNECTING ROD BEARING E (YELLOW)

Price €32.82
#8 13215-ML7-000

NUT OF CONNECTING ROD

Price €10.28
#9 13300-MGZ-D01 i

VILEBREQUIN COMP.

Price €1,400.71
#10 13313-MW0-003

BUSHING A OF VILEBREQUIN (BLACK)

Price €24.20
#10 13314-MW0-003

BUSHING B OF VILEBREQUIN (BROWN)

Price €24.20
#10 13315-MW0-003 i

BUSHING C OF VILEBREQUIN (GREEN)

Price €24.20
#10 13316-MW0-003 i

BUSHING D OF VILEBREQUIN (YELLOW)

Price €24.20
#10 13317-MW0-003

BUSHING E OF VILEBREQUIN (ROSE)

Price €24.20
#11 13420-MGZ-D01

SHAFT COMP. OF BALANCIEUR (40T)

Price €951.58
#12 14311-MGZ-J00

PINION OF DISTRIBUTION (17T)

Price €18.67
#13 23113-MGZ-J00

PINION OF CONTROL PRIMAIRE (34T)

Price €235.08
#14 23114-MGZ-J00

PINION AUXILIAIRE PRIMAIRE (34T)

Price €55.86
#15 23115-MV1-300

SPRING, PINION ENTRAINEMENT PRINCIPAL

Price €4.88
#16 90013-MGZ-J00

BOLT SPECIAL, 10X25

Price €2.98
#17 90405-MGZ-J00

WASHER, 10.5X40

Price €12.68
#18 90742-KYJ-900

SCHEIBENKEIL, 25X18

Price €5.94
#19 91001-MGZ-J00

WASHER A BILLES RADIL SPECIAL, 6204

Price €33.05
