BATTERY 🏍️ CBR500R
IGNITION COIL 🏍️ CBR500R

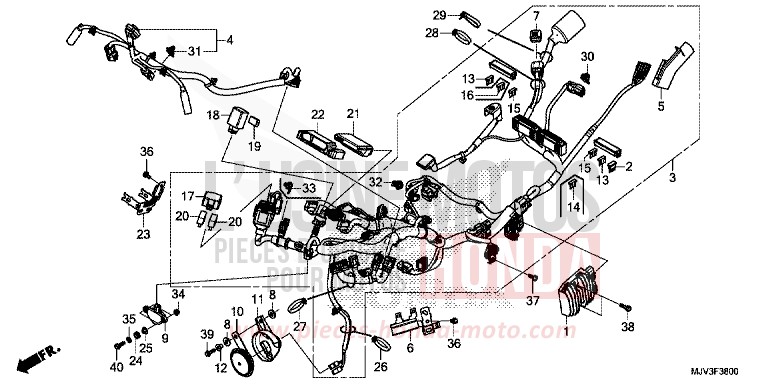

WIRE HARNESS for CBR500R ROSS WHITE (NH196) from 2015

WIRE HARNESS for CBR500R ROSS WHITE (NH196) from 2015
Reference
Product name
#1 31600-MGZ-J01 i

RECTIFIER ASSY, REGULATE

Price €683.64
#2 31730-MAS-601 i

DIODE ASSY, THREE WAY (SUMITOMO)

Price €22.76
#5 32109-MGZ-J41

SUSPENSION, COUPLER

Price €38.94
#6 32206-MGZ-J00

STAY, COUPLER

Price €14.23
#7 32606-GEV-761

CAP, DUMMY (4P) (RED)

Price €10.52
#8 33714-KL3-620

RUBBER, TAILLIGHT BRACKET

Price €7.60
#9 35160-MGS-D31

SENSOR ASSY, BANK ANGLE

Price €314.98
#10 38110-MGZ-J01

HORN COMP (HIGH)

Price €37.60
#13 38221-SNA-A31

FUSE, BLADE (75A)

Price €6.85
#15 38221-SNA-A51

FUSE, BLADE (15A)

Price €6.85
#16 38221-SNA-A81

FUSE, BLADE (30A)

Price €6.85
#17 38281-MGZ-J01

COVER, RELAY BOX

Price €9.96
#18 38301-MEW-921

RELAY COMP, WINKER (MITSUBA)

Price €73.81
#19 38306-KK4-000

SUSPENSION, WINKER RELAY (MITSUBA)

Price €9.01
#20 38501-MEL-003 i

RELAY ASSY, POWER (MICRO ISO 4P)

Price €7.66
#21 38770-MGZ-D03 i

PGM-FI UNIT

Price €435.20
#22 38774-MGZ-J00

CUSHION, PGM-FI UNIT

Price €7.79
#23 50194-MGZ-J00

STAY, RELAY BOX

Price €15.74
#24 64535-MFJ-D00

RUBBER, SIDE COVER

Price €7.43
#25 90129-MGZ-J00

COLLAR, BANK ANGLE SENSOR

Price €4.88
#27 90651-KV6-003 i

BAND, WIRE, 165MM (BLACK)

Price €9.78
#29 90652-KT1-771 i

BAND, WIRE (BLACK)

Price €9.29
#30 91535-TA0-003

CLIP, COUPLER (DARK BROWN)

Price €11.84
#31 91565-S3Y-003

CLIP, COUPLER (GRAY)

Price €6.83
#33 91565-SEL-003

CLIP, COUPLER (BLACK)

Price €6.83
#34 94050-06080 i

NUT, FLANGE, 6MM

Price €1.20
#35 94103-06800 i

WASHER, PLAIN, 6MM

Price €0.78
#36 95701-0601000 i

BOLT, FLANGE, 6X10

Price €1.15
#37 95701-0601408 i

BOLT, FLANGE, 6X14

Price €1.15
#38 95701-0602000 i

BOLT, FLANGE, 6X20

Price €1.08
#39 95701-0602007 i

BOLT, FLANGE, 6X20

Price €1.15
#40 95701-0602208 i

BOLT, FLANGE, 6X22

Price €1.25
#3 32100-MGZ-D11 i

HARNESS, WIRE

Price €450.84
#4 32103-MGZ-J00

SUB HARNESS, FR

Price €236.20
#11 38111-MGZ-J00

GUARD, HORN HEAT

Price €9.37
#12 38117-MGZ-J00

COLLAR, HORN SETTING

Price €3.58
