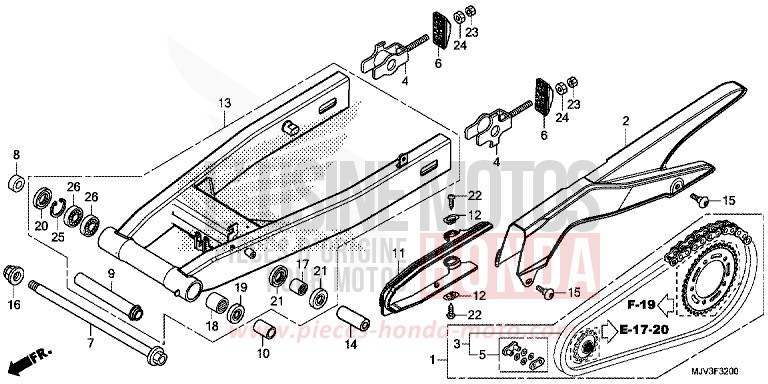

SWINGARM for CBR500R ROSS WHITE (NH196) from 2015

SWINGARM for CBR500R ROSS WHITE (NH196) from 2015
Reference
Product name
#1 06406-MGZ-D00

CHAIN KIT, DRIVE (520-15&amp41T) (STANDARD LINK...

Price €226.98
#2 40510-MGZ-J00

CASE, DRIVE CHAIN

Price €151.75
#3 40540-MGS-D31

CHAIN, DRIVE (DAIDO) (DID520V0-120ZB) (STANDARD...

Price €284.46
#4 40543-MGZ-J00

ADJUSTER COMP, CHAIN

Price €35.44
#5 40545-MGS-D31

JOINT, DRIVE CHAIN (DAIDO)

Price €25.78
#6 40546-MGZ-J00

CAP, SWINGARM END

Price €33.47
#7 52101-MGZ-J00

BOLT, SWINGARM PIVOT

Price €59.84
#8 52105-MJ0-000

COLLAR B, RR FORK PIVOT

Price €9.86
#9 52141-MGZ-J00

COLLAR, CENTER PIVOT DISTANCE

Price €21.44
#10 52143-MGZ-J00

COLLAR, L PIVOT DISTANCE

Price €27.71
#11 52170-MGZ-J00

SLIDER, CHAIN

Price €73.54
#12 52171-KR6-000

WASHER, CHAIN SLIDER

Price €2.09
#13 52200-MGZ-J00

SWINGARM SUB ASSY, RR

Price €1,299.83
#14 52463-MGZ-J00

COLLAR, CUSHION CONNECTING ROD

Price €28.22
#15 90115-MGZ-J00

SCREW, SPECIAL, 6X14

Price €4.34
#16 90305-KCJ-951

NUT, U, 14MM (FUJI SEIMITSU)

Price €8.42
#17 91071-KV3-005

BEARING, NEEDLE (KOYO)

Price €27.85
#18 91071-MT7-003

BEARING, NEEDLE (NTN)

Price €24.96
#19 91202-MAL-601

DUST SEAL, 25X33X4

Price €16.81
#20 91213-MB2-006

DUST SEAL, 22X35X7 (NOK)

Price €13.63
#21 91262-KV3-831

DUST SEAL, 17X24X5 (ARAI)

Price €6.26
#22 93901-25280

SCREW, TAPPING, 5X12

Price €0.77
#23 94002-080000S

NUT, HEX, 8MM

Price €1.04
#24 94030-08000

NUT, HEX, 8MM

Price €0.86
#25 94520-35000

CIRCLIP, INTERNAL, 35MM

Price €1.70
#26 96100-6202010

BEARING, RADIAL BALL, 6202

Price €12.94
