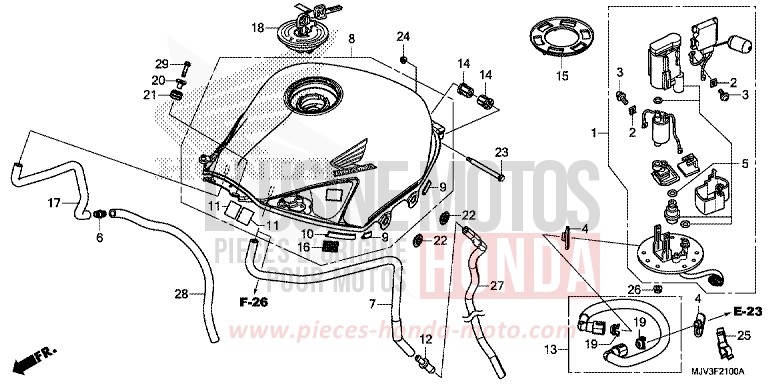

FUEL TANK/FUEL PUMP for CBR500R ROSS WHITE (NH196) from 2015

FUEL TANK/FUEL PUMP for CBR500R ROSS WHITE (NH196) from 2015
Reference
Product name
#1 16700-MGZ-J02 i

ASSY. PUMP A FUEL

Price €384.60
#2 16711-MGS-D31

STOPPER

Price €11.46
#3 16712-MGS-D31

SCREW, 4X6.6

Price €6.80
#4 16719-MEW-920

DAMPER, CONNECTEUR

Price €10.45
#5 16730-MKA-D82 i

ASSY. FILTER A FUEL

Price €103.85
#6 17359-419-670

BREATHER PIPE CONNECTOR

Price €6.80
#7 17418-MGZ-J00

TUBE OF RENIFLARD OF RESERVOIRDE FUEL

Price €12.46
#9 17501-MGZ-J00

RUBBER OF TANK FUEL

Price €3.42
#10 17521-KY1-300

GASKET, TANK

Price €6.73
#11 17528-KCZ-930

RUBAN B OF PROTECTOR OF TANK

Price €10.93
#12 17561-KVG-900

RACCORD OF PIPE FUEL

Price €3.16
#13 17570-MGZ-J01

FUEL FEED HOSE COMP.

Price €82.42
#14 17572-KPP-T00

BUSHING, TANK OF FUEL PIVOT REAR

Price €3.42
#15 17574-MGS-D30

GASKET OF BASE

Price €33.79
#17 17590-MGZ-J00

PIPE OF DRAINAGE OF RESERVOIRD'FUEL

Price €13.18
#18 17620-MCB-611 i

PLUG COMP. REMPLISSAGE FUEL

Price €164.70
#19 17711-MGE-003 i

FIXING

Price €14.57
#20 61102-KTY-D30

RADIATOR MOUNTING BAND

Price €9.42
#21 77208-KW7-900

RUBBER B, MOUNTING SEAT

Price €9.20
#22 83551-300-000 i

AIR FILTER HOUSING RING

Price €10.69
#23 90135-MS2-000

BOLT, CHARNIERE OF TANK

Price €9.55
#24 90301-KGH-901

NUT U, 6MM (FUJI SEIMITSU)

Price €3.16
#25 91593-MGZ-J01

CLIP OF HOSE FUEL (BLACK)

Price €5.65
#26 94050-06000 i

FLANGE NUT, 6MM

Price €0.79
#27 95005-7564020

TUBE, 7.3X640

Price €19.28
Contact us
#28 95005-8064020

TUBE, 8X640 (95005-80001-50M)

Price €13.30
#29 96001-0602507 i

FLANGE BOLT, 6X25

Price €1.25
#8 17500-MJV-D20ZA

TANK ASSY, FUEL (WL) TYPE1 (TYPE1 )

Price €961.06
#16 17580-MGZ-J00

PIECE OF SERRAGE A, VERROUILLAGE JUMELE 18X28

Price €3.78
