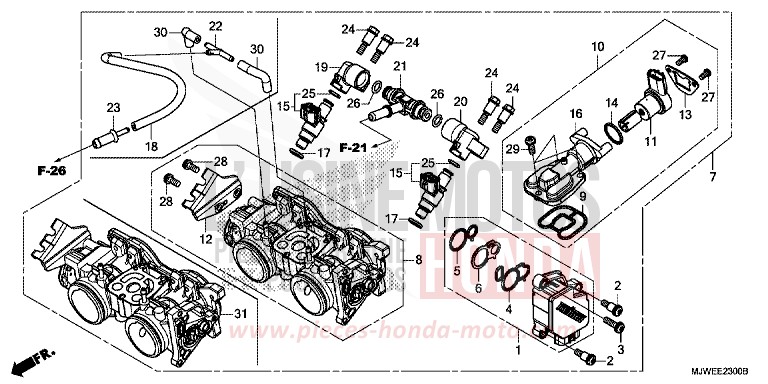

THROTTLE BODY for CBR500R MILLENNIUM RED (R263) from 2016

THROTTLE BODY for CBR500R MILLENNIUM RED (R263) from 2016
Reference
Product name
#1 16060-MGZ-D01

SENSOR SET

Price €248.70
#2 16081-KPH-701 i

SCREW, TORX, 5X87

Price €7.08
#3 16082-KPH-701 i

SCREW, TORX, 5X17

Price €7.08
#4 16083-MGZ-D01

O-RING, SENSOR

Price €36.72
#5 16084-MGZ-D01

O-RING, SENSOR

Price €34.39
#6 16085-MGZ-D01

PLATE

Price €44.39
#7 16400-MJW-L01

BODY ASSY, THROTTLE (GQBSB A)

Price €1,972.19
Contact us
#8 16410-MJW-L01

BODY SET

Price €1,081.52
Contact us
#9 16428-MGZ-D01

O-RING, AIR INJECTION CONTROL VALVE

Price €37.08
#10 16430-MJW-J01

VALVE SET, IDLE AIR CONTROL

Price €349.44
#11 16431-MJP-G51

MOTOR ASSY

Price €297.94
#12 16432-MGZ-D01

STAY, WIRE

Price €62.32
#13 16433-MEW-921

PLATE, IDLE AIR CONTROL VALVE

Price €24.89
#14 16435-MFJ-D01

O-RING, 178X19

Price €7.34
#15 16450-MFJ-D01 i

INJECTOR ASSY, FUEL

Price €346.61
#16 16451-MGZ-D01

BODY COMP, IDLE AIR CONTROL VALVE

Price €165.59
#17 16472-MCW-000

SEAL RING, INJECTOR

Price €7.13
#19 16610-MGZ-D01

PIPE, FUEL (A)

Price €43.42
#20 16620-MGZ-D01

PIPE, FUEL (B)

Price €43.42
#21 16630-MFJ-D00

T-JOINT, FUEL

Price €54.25
#24 90021-MGZ-D02 i

BOLT, SHOULDER

Price €6.58
#25 91301-P7A-004

O-RING, 78X19

Price €5.41
#26 91301-PLC-000

O-RING, 747X36

Price €5.29
#27 93500-040081H

SCREW, PAN, 4X8

Price €0.78
#28 93892-0501218 i

SCREW-WASHER, 5X12

Price €1.34
#29 93892-0501418 i

SCREW-WASHER, 5X14

Price €0.88
