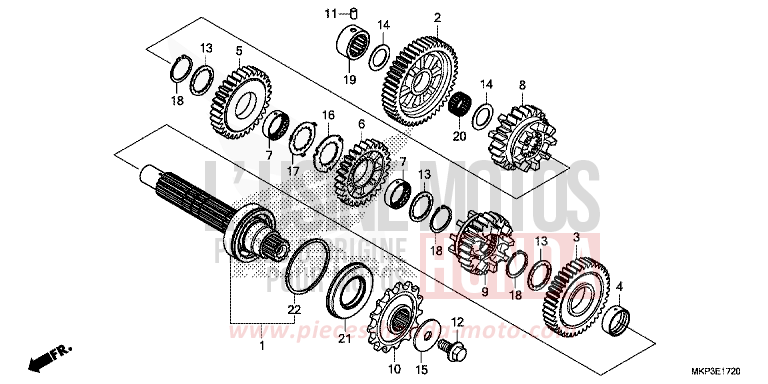

TRANSMISSION (COUNTERSHAFT) for CBR500R MAT AXIS GRAY METALLIC (NH303) from 2019

TRANSMISSION (COUNTERSHAFT) for CBR500R MAT AXIS GRAY METALLIC (NH303) from 2019
Reference
Product name
#1 23220-MGZ-J01

COUNTERSHAFT COMP

Price €130.16
#2 23421-MKP-D00

GEAR, COUNTERSHAFT FIRST (46T)

Price €84.67
#3 23441-MKP-D00

GEAR, COUNTERSHAFT SECOND (40T)

Price €87.34
#4 23442-ML7-000

COLLAR, 28MM

Price €30.61
#5 23461-MKP-D00

GEAR, COUNTERSHAFT THIRD (32T)

Price €84.61
#6 23481-MKP-D00

GEAR, COUNTERSHAFT FOURTH (26T)

Price €83.21
#7 23482-MV9-670

COLLAR, SPLINE, 28X31X9

Price €29.82
#8 23501-MKP-D00

GEAR, COUNTERSHAFT FIFTH (23T)

Price €97.34
#9 23521-MKP-D00

GEAR, COUNTERSHAFT SIXTH (24T)

Price €226.27
#10 23801-MKP-D00

SPROCKET, DRIVE (15T)

Price €81.65
#11 24261-283-000

PIN, GEARSHIFT FORK GUIDE

Price €7.90
#12 90037-422-003

BOLT, SPECIAL, 10MM

Price €10.03
#13 90452-MR7-000

WASHER, SPLINE, 28X34X15

Price €5.57
#14 90454-428-000

WASHER, THRUST, 20MM

Price €6.70
#15 90459-438-000

WASHER, 102MM

Price €7.37
#16 90463-MR7-000

WASHER, SPLINE, 28MM

Price €10.72
#17 90464-MR7-000

WASHER, LOCK, 28MM

Price €10.57
#18 90603-MN4-000

CIRCLIP, 28MM

Price €7.90
#19 91023-MKP-D01

BEARING, NEEDLE, 20X34X168 (NTN)

Price €50.48
#20 91026-MGZ-J00

BEARING, NEEDLE, 20X24X11

Price €31.94
#21 91207-KT8-003

OIL SEAL, 34X62X8

Price €15.18
#22 94560-62200

RING, SNAP, 62MM

Price €3.13
