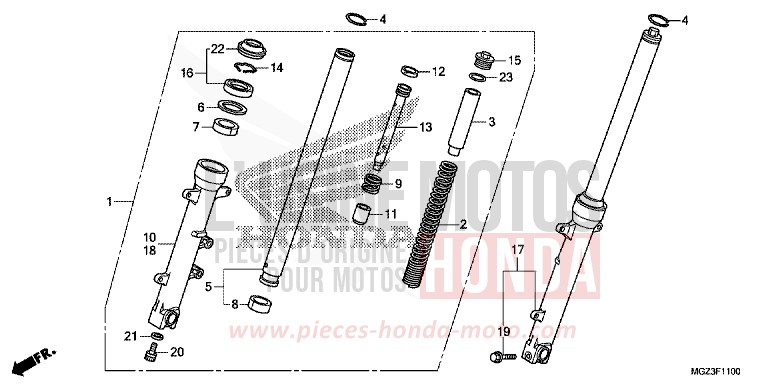

FRONT FORK for CBR500R GRAPHITE BLACK (NHB01) from 2013

FRONT FORK for CBR500R GRAPHITE BLACK (NHB01) from 2013
Reference
Product name
#1 51400-MGZ-J01 i

R. FRONT FORK ASSY. (SHOWA)

Price €1,025.24
#2 51401-MGZ-J01

SPRING OF FOURCH FRONT

Price €60.61
#3 51402-MGZ-J01

BAND OF SPRING

Price €31.14
#4 51405-MB4-003

RING OF STOPPER

Price €11.34
#5 51410-MGZ-J01

PIPE COMP. FORK FRONT

Price €219.79
#6 51412-MB4-003 i

RING OF REFOULEMENT (SHOWA)

Price €13.46
#7 51414-MFJ-A51

RING OF GUIDE

Price €25.74
#8 51415-MFJ-A51

POUSSEE OF SLIDER

Price €25.74
#9 51416-KF0-003 i

SPRING OF REBONDISSEMENT FRONT (SHOWA)

Price €11.24
#10 51420-MGZ-J01

HOUSING COMP. LOWER R.

Price €80.33
#11 51432-MV9-003 i

PIECE OF RETENUE D'OIL (SHOWA)

Price €42.04
#12 51437-KV3-701

RING OF PISTON

Price €12.82
#13 51440-MGZ-J01

PIPE OF SEAT

Price €70.16
#14 51447-KA4-711 i

RING OF STOPPER OF GASKET SEALING A OIL (SHOWA)

Price €8.32
#15 51454-MM9-671 i

FRONT FORK BOLT

Price €60.74
#16 51490-MER-R61 i

FRONT FORK GASKET SET

Price €40.92
#17 51500-MGZ-J01 i

L. FRONT FORK ASSY. (SHOWA)

Price €1,025.24
#18 51520-MGZ-J01

HOUSING COMP. LOWER L.

Price €80.33
#19 90109-MR7-000 i

FLANGE BOLT, 8X45

Price €6.94
#20 90116-KV3-701 i

BOLT OF SOCKET, 8MM (SHOWA)

Price €5.96
#21 90544-283-000 i

SPECIAL WASHER, 8MM (SHOWA)

Price €6.26
#22 91254-MEE-D01 i

COVER, POUSSIERE (SHOWA)

Price €16.00
#23 91356-KF0-003 i

O-RING, 33.2X2.4

Price €6.53
