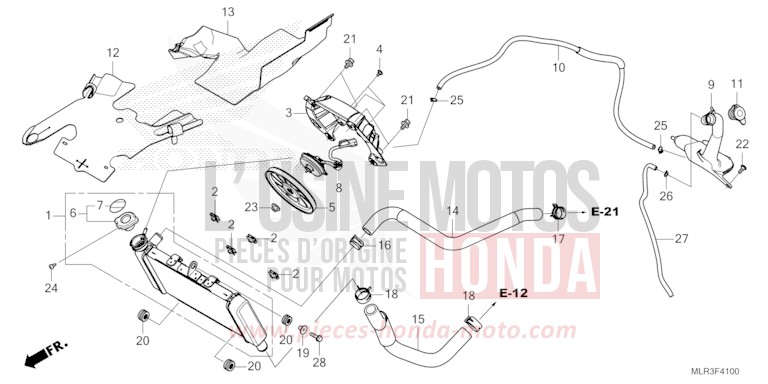

RADIATOR for CBR500R GRAND PRIX RED (R380) from 2024

RADIATOR for CBR500R GRAND PRIX RED (R380) from 2024
Reference
Product name
#1 19010-MKP-DN1

RADIATOR COMP

Price €729.04
#2 19014-KEA-003

NUT, POSE (6MM)

Price €7.20
#3 19015-MGZ-J01

NOZZLE OF FAN COMP.

Price €32.38
#4 19016-KEA-003

KEGELKOPFBOLT, 4X85

Price €6.52
#5 19020-MGS-D31

KUEHLVENTILATOR COMP. (TRAD)

Price €113.93
#6 19037-KZZ-G41

CAP COMP, RADIATOR (TRAD)

Price €40.24
#7 19046-MCA-G61

LABEL OF CAP OF RADIATOR (T.WHEEL)

Price €14.70
#8 19080-MKP-HN1

ASSY. ENGINE OF FAN

Price €179.52
#9 19101-MGZ-J00

TANK OF RESERVE OF RADIATOR

Price €21.00
#10 19102-MJW-J00

PIPE OF TANK OF RESERVE

Price €22.88
#11 19109-KBP-900

PLUG OF TANK OF RESERVE

Price €3.97
#12 19126-MKP-J00

RUBBER OF GUARD OF CHALEUR

Price €17.93
#13 19127-MLR-D00

RUBBER, ECRAN THERMIQUE REAR

Price €21.14
#14 19501-MKP-DN0

HOSE, RADIATOR UPPER

Price €35.17
#15 19502-MGZ-J00

HOSE LOWER OF RADIATOR

Price €30.79
#16 19531-MGZ-J00

GRIFFE OF HOSE WATER (D27)

Price €5.21
#17 19531-MJW-J00

GRIFFE OF HOSE WATER (D27)

Price €5.80
#18 19533-MJW-J00

GRIFFE OF HOSE WATER (D30)

Price €7.08
#19 61102-KTY-D30

RADIATOR MOUNTING BAND

Price €9.42
#20 61304-415-000

RUBBER OF MOUNTING OF HOUSING OF HEADLIGHT

Price €9.37
#21 90120-KCR-003

BOLT WITH WASHER, 6X16

Price €6.82
#22 90134-KPP-T00

CYLINDRICAL HEAD SCREW, 5X14

Price €3.97
#23 90315-MFL-003

FLANGE NUT, 3MM

Price €6.38
#24 93901-22020

SCREW, TAPPING, 3X6

Price €0.64
#25 95002-02100 i

PIPE CLIP (B10)

Price €1.08
#26 95002-50000 i

PIPE CLIP (C9)

Price €0.78
#27 95005-5040030 i

PIPE

Price €16.72
Contact us
#28 95701-0602207 i

FLANGE BOLT, 6X22

Price €1.34
