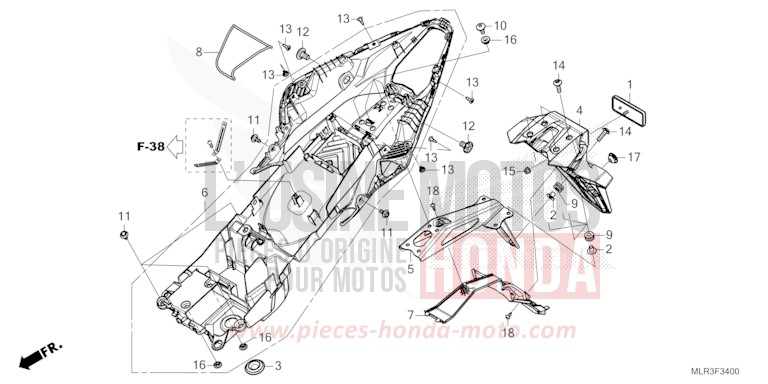

REAR FENDER for CBR500R GRAND PRIX RED (R380) from 2024

REAR FENDER for CBR500R GRAND PRIX RED (R380) from 2024
Reference
Product name
#1 33741-KPL-902 i

CATADIOPTRE (FIEM)

Price €3.67
#2 61103-KRY-900 i

RING A, FRONT AILE

Price €3.28
#3 64285-MKP-J00

WASHER ISOLANTE, PANNEAU INT.

Price €5.71
#4 80100-MKP-D00ZA

AILE A, REAR (WL) TYPE1

Price €41.38
#5 80102-MJW-J00

COMP. SUPPORT, AILE A

Price €66.23
#6 80104-MLR-D00

FENDER ASSY B, RR

Price €101.58
#7 80106-MJW-J00

COVER OF FENDER REAR

Price €22.42
#8 80123-GN5-900

STRIPE D'OUTIL

Price €10.27
#9 83545-KCJ-690

SIDE COVER RUBBER

Price €3.96
#10 90107-K26-900

BOLT SPECIAL, 6X16

Price €2.98
#11 90111-MKP-DN0

FLANGE BOLT, 6MM

Price €2.98
#12 90115-MKP-J00

BOLT SPECIAL, 10X16

Price €4.44
#13 90116-SP0-003

CLIP OF GASKET SEALING OF BUMPER

Price €3.36
#14 90130-MKP-J00

CYLINDRICAL HEAD SCREW, 6X22

Price €3.97
#15 90301-KWN-901

NUT U, 5MM

Price €3.16
#16 90503-MJE-D40

BAND OF MOUNTING

Price €4.30
#17 90852-KPP-T00

PLUG OF HOLE

Price €3.97
#18 93903-24380 i

SELF-TAPPING SCREW, 4X12

Price €1.21
