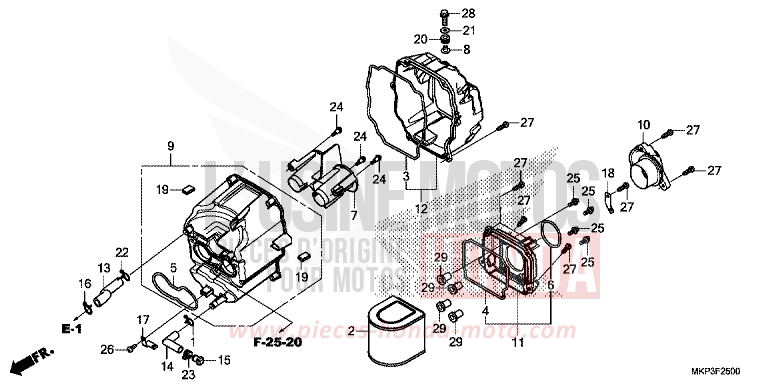

AIR CLEANER for CBR500R GRAND PRIX RED (R380) from 2021

AIR CLEANER for CBR500R GRAND PRIX RED (R380) from 2021
Reference
Product name
#1 15771-KV6-000

CLIP, OIL DRAIN TUBE

Price €7.08
#2 17211-MKP-J00

ELEMENT, AIR CLEANER

Price €49.90
#3 17213-MKP-J00

SEAL, AIR CLEANER

Price €3.05
#4 17214-MKP-J00

SEAL, AIR CLEANER LID

Price €2.47
#5 17215-MGZ-D00

SEAL, THROTTLE BODY

Price €3.37
#6 17216-MKP-J00

SEAL, AIR CLEANER DUCT

Price €2.47
#7 17225-MKP-J00

FUNNEL, AIR

Price €16.04
#8 17232-KYJ-900

COLLAR, AIR CLEANER MOUNTING

Price €3.28
#9 17235-MKP-J00

CASE SUB ASSY, AIR CLEANER

Price €26.75
#10 17240-MKP-J00

DUCT, AIR CLEANER

Price €8.09
#11 17245-MKP-J00

LID SUB ASSY, AIR CLEANER

Price €14.69
#12 17255-MKP-J00

COVER SUB ASSY, AIR CLEANER

Price €22.13
#13 17265-MGZ-D00

TUBE, BREATHER

Price €8.76
#14 17366-428-670

TUBE A, DRAIN

Price €15.47
#15 17370-382-870 i

PLUG, BREATHER TUBE

Price €2.70
#16 17724-102-700

CLIP, SUB TANK HOSE

Price €7.08
#17 32150-MGZ-J00

STAY, ENGINE SUB HARNESS

Price €5.00
#18 32207-MGZ-J00

STAY, HARNESS

Price €5.00
#19 80109-KYJ-900

SPONGE, RUBBER

Price €4.14
#20 83545-KCJ-690

RUBBER, SIDE COVER

Price €3.96
#21 90538-KSH-900

WASHER, SPECIAL, 6MM

Price €3.28
#22 90646-657-000

CLIP, AIR HOSE, 16MM

Price €9.10
#23 91406-MS8-000

CLAMP, TUBE (D145)

Price €8.72
#24 91508-MGP-D00

SCREW, PAN, 5MM

Price €10.69
#25 93891-0501608 i

SCREW-WASHER, 5X16

Price €1.00
#26 93901-25320

SCREW, TAPPING, 5X16

Price €0.78
#27 93903-25480

SCREW, TAPPING, 5X20

Price €0.64
#28 96001-0602004

BOLT, FLANGE, 6X20

Price €1.36
#29 19619-ZM7-300

COLLAR, FAN COVER

Price €1.86
