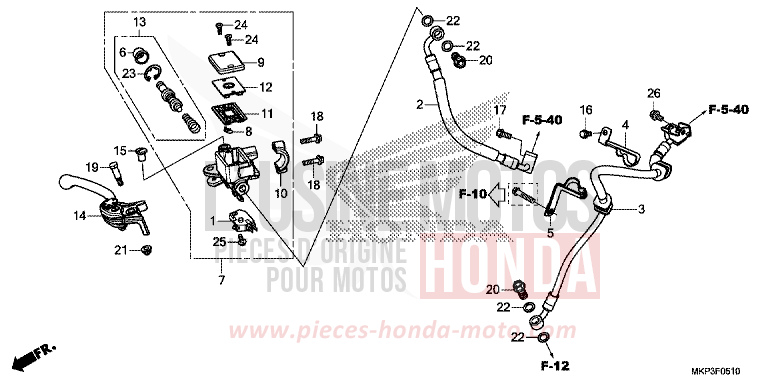

FRONT BRAKE MASTER CYLINDER (CBR500RAK/L/M) for CBR500R GRAND PRIX RED (R380) from 2019

FRONT BRAKE MASTER CYLINDER (CBR500RAK/L/M) for CBR500R GRAND PRIX RED (R380) from 2019
Reference
Product name
#1 35340-MGS-D31

ASSY. SWITCH STOP FRONT

Price €52.01
#3 45126-MJW-J11

HOSE COMP B, FR BRAKE

Price €118.62
#4 45155-MGZ-J10

FLANGE A OF HOSE OF BRAKE FRONT

Price €9.12
#5 45156-MGZ-J10

CLIP B OF HOSE OF BRAKE FRONT

Price €8.45
#6 45504-410-003 i

BOOT COMP.

Price €17.71
#7 45510-MGZ-D02

CYLINDER SUB ASSY, FR BRAKE MASTER (NISSIN)

Price €138.56
#8 45512-MA6-006

PROTECTOR

Price €7.12
#9 45513-KK1-771 i

CAP, HAUPTCYLINDER

Price €39.60
#10 45517-166-006 i

SUPPORT OF MASTER CYLINDER

Price €28.03
#11 45520-GE2-006

DIAPHRAGM

Price €29.99
#12 45521-K21-901

PLATE, DIAPHRAGM

Price €5.30
#13 45530-471-831 i

SET OF MASTER CYLINDER

Price €81.41
#14 53170-MJW-J01

LEVER ASSY, R HANDLE

Price €66.29
#15 53174-116-670

PLUG OF SUPPORT OF LEVER HANDLEBAR

Price €7.91
#16 90013-GHB-600

FLANGE BOLT, 6X10

Price €5.96
#17 90013-GHB-610

FLANGE BOLT, 6X12

Price €5.96
#18 90013-GHB-660

FLANGE BOLT, 6X22

Price €5.96
#19 90114-166-006 i

BOLT OF PIVOT OF LEVER HANDLE

Price €10.25
#20 90145-MS9-612 i

BOLT OIL, 10X22 (SAGA)

Price €16.85
#21 90202-KCW-870

NUT OF CAP, 6MM

Price €1.93
#22 90545-300-000 i

WASHER OF BOLT OIL

Price €5.30
#23 90651-MA5-671 i

CIRCLIP

Price €7.63
#24 93600-040121G i

SCREW A HEAD PLATE, 4X12

Price €0.77
#25 93893-0401217 i

SCREW A HEAD A WASHER, 4X12

Price €1.08
#26 95701-0601007 i

FLANGE BOLT, 6X10

Price €1.00
#2 45125-MKP-J01

HOSE COMP A, FR BRAKE

Price €64.56
