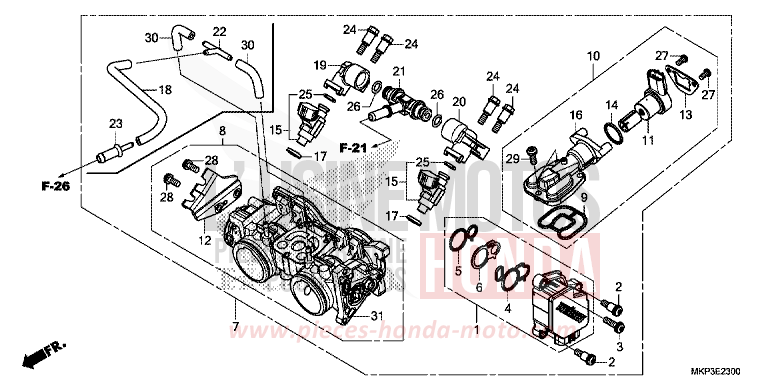

THROTTLE BODY for CBR500R GRAND PRIX RED (R380) from 2019

THROTTLE BODY for CBR500R GRAND PRIX RED (R380) from 2019
Reference
Product name
#1 16060-MKG-L01

ASSY. OF SENSOR

Price €135.29
#2 16081-KPH-701 i

SCREW OF CLAMP 5X8.7

Price €7.08
#3 16082-KPH-701 i

SCREW OF CLAMP 5X17

Price €7.08
#4 16083-MGZ-D01

O-RING, SENSOR

Price €36.72
#5 16084-MGZ-D01

O-RING, SENSOR

Price €34.39
#6 16085-MGZ-D01

PLATE

Price €44.39
#7 16400-MKP-D01

BODY ASSY, THROTTLE (GQB7B A) (FRAME NO)

Price €518.36
#7 16400-MKP-D02

ASSY. BODY OF PAPILLON (GQB7B A)

Price €518.36
#9 16428-MGZ-D01

O-RING, VALVE OF CONTROL INJECTION AIR

Price €37.08
#10 16430-MJW-J01

ASSY. CLAPET, CONTROL AIR RALENTI

Price €349.44
#11 16431-MJP-G51

ASSY. ENGINE

Price €297.94
#13 16433-MEW-921

PLATE, CLAPET OF CONTROL D' AIR OF RALENTI

Price €24.89
#14 16435-MFJ-D01

O-RING, 17.8X1.9

Price €7.34
#15 16450-MKP-T01

INJECTOR ASSY, FUEL (FRAME NO)

Price €115.55
#15 16450-MKP-T02

ASSY. INJECTEUR FUEL

Price €115.55
#16 16451-MGZ-D01

COMP. BODY, CLAPET OF CONTROL AIR OF RALENTI

Price €165.59
#17 16472-MKP-T00

RING SEALING

Price €31.39
#18 16482-MGZ-A01

TUBE, PRUGE

Price €260.03
#19 16610-MKP-T01

PIPE FUEL (A)

Price €33.01
#20 16620-MKP-T01

PIPE FUEL (B)

Price €33.01
#21 16630-MFJ-D00

CONNECTOR EN T, FUEL

Price €54.25
#22 17201-MG9-000

CONNECTOR A OF PIPE OF DIDE

Price €27.36
#23 19126-KM1-010 i

CONNECTOR OF TUBE

Price €6.80
#24 90021-MGZ-D02 i

BOLT, EPAULE

Price €6.58
#25 91301-MKP-T01

O-RING

Price €12.46
#26 91301-PLC-000

O-RING, 7.47X3.6

Price €5.29
#27 93500-040081H

CYLINDRICAL HEAD SCREW, 4X8

Price €0.78
#29 93892-0501418 i

SCREW A HEAD A WASHER, 5X14

Price €0.88
#30 95005-3504520 i

TUBE, 3.5X45 (95005-35001-20M)

Price €1.63
#31 16410-MKP-D01

SET OF BODY

Price €324.30
