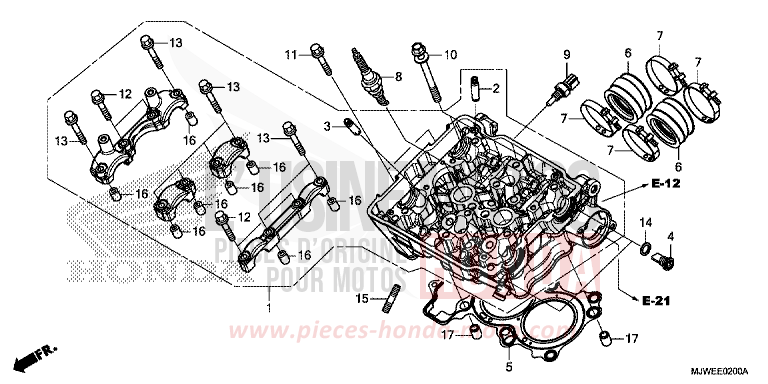

CYLINDER HEAD for CBR500R GRAND PRIX RED (R380) from 2018

CYLINDER HEAD for CBR500R GRAND PRIX RED (R380) from 2018
Reference
Product name
#1 12010-MJW-DB0

HEAD ASSY, CYLINDER

Price €1,415.38
#2 12205-KYJ-305

GUIDE, EX VALVE (OS)

Price €24.78
#3 12204-KYJ-305

GUIDE, IN VALVE (OS) (EXHAUST SIDE)

Price €24.78
#4 12207-MGZ-J00

BOLT, SEALING, 12MM

Price €13.63
#5 12251-MGZ-J01

GASKET, CYLINDER HEAD

Price €44.35
#6 16211-MGZ-J00

INSULATOR, THROTTLE BODY

Price €35.69
#7 16217-MGZ-J00

BAND, INSULATOR

Price €6.68
#8 31916-KRM-841 i

PLUG, SPARK (CPR8EA-9) (NGK)

Price €17.09
#9 37870-MGS-D31

SENSOR ASSY, WATER TEMPERATURE (NTCL)

Price €117.89
#10 90007-MGZ-J00

BOLT-WASHER, 9X100

Price €9.55
#11 90011-MGZ-J00

BOLT, FLANGE, 6X35

Price €2.98
#12 90017-KYJ-900

BOLT, FLANGE, 6X32

Price €2.98
#13 90019-KYJ-900

BOLT, FLANGE, 6X395

Price €2.98
#14 90418-KYJ-900

WASHER, 122X17X15

Price €3.28
#15 92900-080223E

BOLT, STUD, 8X22

Price €2.78
#16 94301-08140 i

DOWEL PIN, 8X14

Price €2.05
#17 94301-12160

PIN A, DOWEL, 12X16

Price €2.08
