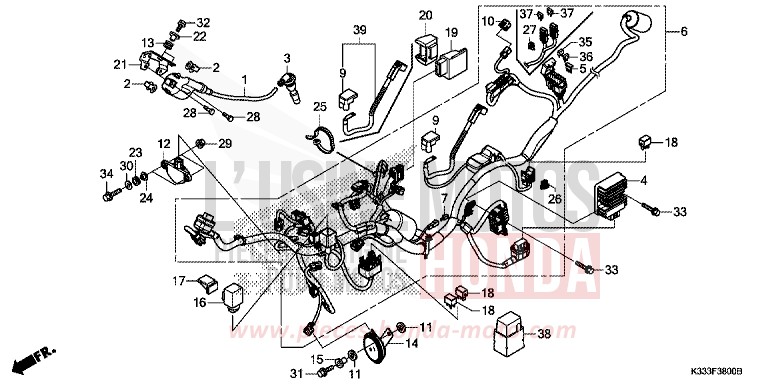

WIRE HARNESS for CBR300R ROSS WHITE (NH196) from 2016

WIRE HARNESS for CBR300R ROSS WHITE (NH196) from 2016
Reference
Product name
#1 30510-K33-D01

COIL COMP, IGNITION

Price €80.87
Contact us
#2 30520-GFM-900

SPACER, IGNITION COIL

Price €8.96
#3 30700-MGZ-J01

CAP ASSY, NOISE SUPPRESSOR

Price €118.86
#4 31600-KVK-901

RECTIFIER ASSY, REGULATOR

Price €346.98
#5 31730-MAS-601

DIODE ASSY, THREE WAY (SUMITOMO)

Price €48.62
#6 32100-K33-D00

HARNESS, WIRE

Price €316.42
Contact us
#7 32146-S84-003

CONNECTOR, DIODE (2P) (3A)

Price €26.36
#9 32406-KAZ-010

COVER, STARTER MAGNETIC TERMINAL

Price €17.05
#10 32606-GEV-761

CAP, DUMMY (4P) (RED)

Price €10.15
#11 33714-KL3-620

RUBBER, TAILLIGHT BRACKET

Price €6.62
#12 35160-MGS-D31

SENSOR ASSY, BANK ANGLE

Price €328.60
#13 36043-657-000

GROMMET, WIRE HARNESS

Price €5.58
#14 38110-KYJ-901

HORN COMP (HIGH)

Price €48.10
#15 38117-KFE-701

COLLAR, HORN SETTING

Price €18.05
#16 38301-KTF-671

RELAY COMP, WINKER

Price €36.95
#17 38306-K33-D01

SUSPENSION, WINKER RELAY (MITSUBA)

Price €15.74
Contact us
#18 38501-KWN-901

RELAY COMP, POWER (MICRO ISO 4P) (OMRON)

Price €23.27
#19 38770-K33-D02

PGM-FI UNIT

Price €400.22
Contact us
#20 38771-GFM-900

SUSPENSION, ENGINE CONTROL UNIT

Price €4.58
#21 50204-KYJ-900

STAY COMP, IGNITION COIL

Price €28.85
#22 50214-KYJ-900

COLLAR, IGNITION COIL MOUNTING

Price €5.80
#23 64535-MFJ-D00

RUBBER, SIDE COVER

Price €5.56
#24 90129-MGZ-J00

COLLAR, BANK ANGLE SENSOR

Price €3.17
#25 90651-KV6-003

BAND, WIRE, 165MM (BLACK)

Price €7.72
#26 91536-STK-003

CLIP, RELAY HOLDER (NATURAL)

Price €8.21
#28 92101-060204J

BOLT, HEX, 6X20

Price €1.78
#29 94050-06080

NUT, FLANGE, 6MM

Price €1.18
#30 94103-06800

WASHER, PLAIN, 6MM

Price €0.77
#31 95701-0601600

BOLT, FLANGE, 6X16

Price €1.15
#32 95701-0601608

BOLT, FLANGE, 6X16

Price €1.06
#33 95701-0602200

BOLT, FLANGE, 6X22

Price €1.39
#34 95701-0602208

BOLT, FLANGE, 6X22

Price €1.22
#35 98200-41000

FUSE, MINI (10A)

Price €1.22
#36 98200-41500

FUSE, MINI (15A)

Price €1.22
#38 38506-KZZ-900

COVER, RELAY (2P)

Price €7.24
#39 32401-K33-305

CABLE, STARTER MAGNETIC BATTERY

Price €25.13
