RADIATOR for CBR300R NOIR (NH1) from 2016

RADIATOR for CBR300R NOIR (NH1) from 2016

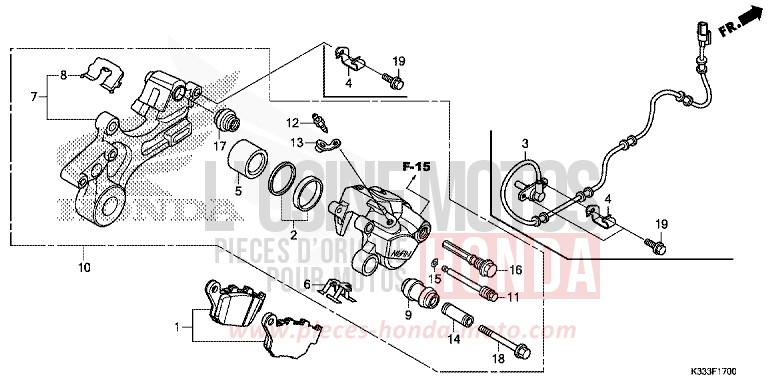

Reference
Product name
# 06435-KYJ-901 i

PAD SET, RR

Price €58.97
# 06451-443-405

SET SEALING, PISTON

Price €28.81
# 43107-KT7-761

PISTON

Price €45.54
# 43108-MBB-006

SPRING OF BRAKE PAD

Price €14.00
# 43110-KYJ-901

BRACKET COMP, RR

Price €144.31
# 43112-KT7-761

FIXING

Price €14.81
# 43132-KT7-761

BOOT OF MANCHON

Price €11.68
# 43150-KYJ-901

CALIPER SUB ASSY, RR (NISSIN)

Price €353.46
# 43215-KZ4-J41

PIN OF SUSPENSION

Price €18.26
# 43352-568-003 i

PURGE SCREW (NISSIN)

Price €9.41
# 43353-461-771 i

BLEEDER CAP

Price €9.12
# 45111-MA3-006

MANCHON

Price €21.78
# 45111-MAJ-G41 i

RING OF STOPPER

Price €7.22
# 45131-MN9-006

BOLT OF PIN

Price €20.35
# 45133-MA3-006 i

BOOT B

Price €2.76
# 90180-MN8-006 i

FLANGE BOLT, 8X49

Price €8.15
#1 19010-KYJ-961

RADIATOR COMP

Price €624.43
#2 19014-KEA-003

NUT, POSE (6MM)

Price €7.20
#3 19015-KYJ-901

SHROUD COMP

Price €17.71
#4 19016-KEA-003

KEGELKOPFBOLT, 4X85

Price €6.52
#5 19020-KVZ-631

FAN COMP. REFROIDISSEMENT

Price €94.07
#6 19045-KPC-871 i

CAP COMP, RADIATOR (TRAD)

Price €104.56
#7 19055-KPC-871 i

GASKET, KUHLERVERSCHLUSS (BILDSYMBOL)

Price €14.33
#8 19062-KYJ-900

HOSE, RADIATOR UPPER

Price €13.03
#9 19067-KYJ-900

HOSE, RADIATOR LOWER

Price €13.75
#10 19080-KYJ-901

MOTOR ASSY, FAN

Price €140.50
#11 19105-KYJ-900

TUBE, RADIATOR BREATHER

Price €13.03
#12 19109-KPC-640 i

CAP, RESERVE TANK

Price €14.81
#13 19110-KYJ-900

TANK, RADIATOR RESERVE

Price €19.08
#14 19111-KYJ-900

COVER, RADIATOR RESERVE TANK

Price €7.04
#15 19125-KYJ-900

RUBBER, HEAT GUARD

Price €22.45
#16 19517-ML7-691 i

CLIP, TUBE, 22-29MM

Price €18.73
#17 61102-KTY-D30

RADIATOR MOUNTING BAND

Price €9.42
#18 61304-415-000

RUBBER OF MOUNTING OF HOUSING OF HEADLIGHT

Price €9.37
#19 90111-162-000 i

FLANGE BOLT, 6MM

Price €7.55
#20 90120-KCR-003

BOLT WITH WASHER, 6X16

Price €6.82
#21 91509-GE2-760

KEGELKOPFBOLT, 5X115

Price €6.80
#22 93901-22020

SCREW, TAPPING, 3X6

Price €0.64
#23 90315-MFL-003

FLANGE NUT, 3MM

Price €6.38
#24 95002-02100 i

PIPE CLIP (B10)

Price €1.08
#25 95005-5535020

TUBE 5X30 (95005-50001-30M)

Price €3.98
#26 95701-0602207 i

FLANGE BOLT, 6X22

Price €1.34
