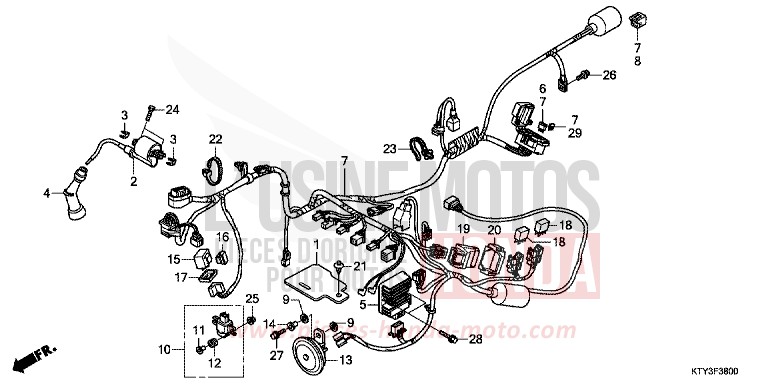

FAISCEAU DES FILS for CBR125RW ROSS WHITE (NH196) from 2011

FAISCEAU DES FILS for CBR125RW ROSS WHITE (NH196) from 2011
Reference
Product name
#1 19127-KTY-H50

RUBBER, HORN

Price €9.36
#2 30510-KTY-D31

COIL COMP, IGNITION

Price €69.94
#3 30520-GFM-900

SPACER, IGNITION COIL

Price €8.96
#4 30700-KRS-971

CAP ASSY, NOISE SUPPRESSOR

Price €28.27
#5 31600-KVK-901

RECTIFIER ASSY, REGULATOR

Price €346.98
#6 31730-MAS-601

DIODE ASSY, THREE WAY (SUMITOMO)

Price €48.62
#7 32100-KTY-H50

HARNESS, WIRE

Price €310.27
#8 32606-GEV-761

CAP, DUMMY (4P) (RED)

Price €10.15
#9 33714-KL3-620

RUBBER, TAILLIGHT BRACKET

Price €6.62
#10 35160-KPP-T01

SENSOR ASSY, BANK ANGLE

Price €71.40
#11 35162-MGC-003

COLLAR

Price €11.26
#12 35163-MGC-003

GROMMET

Price €9.18
#13 38110-KPP-T01

HORN COMP (HIGH)

Price €48.10
#14 38117-KFE-701

COLLAR, HORN SETTING

Price €18.05
#15 38301-KJ6-743

RELAY COMP, WINKER (MITSUBA)

Price €75.58
#16 38306-GE7-000

SUSPENSION, WINKER RELAY

Price €11.92
#17 38307-GJ1-014

COVER, SEAL (MITSUBA)

Price €8.99
#18 38501-KWN-901

RELAY COMP, POWER (MICRO ISO 4P) (OMRON)

Price €23.27
#19 38770-KTY-H52

PGM-FI UNIT

Price €434.59
#20 38771-KTY-D30

CUSHION, PGM-FI UNIT

Price €5.93
#21 90116-KWT-900

RIVET, PUSH, 7MM

Price €9.43
#22 90650-KV6-003

BAND, WIRE, 95MM

Price €7.55
#23 91540-KPH-902

CLIP, HARNESS BAND

Price €1.92
#24 92101-060204J

BOLT, HEX, 6X20

Price €1.78
#25 94050-06080

NUT, FLANGE, 6MM

Price €1.18
#26 95701-0601000

BOLT, FLANGE, 6X10

Price €1.13
#27 95701-0601600

BOLT, FLANGE, 6X16

Price €1.15
#28 95701-0602000

BOLT, FLANGE, 6X20

Price €1.06
#29 98200-41000

FUSE, MINI (10A)

Price €1.22
