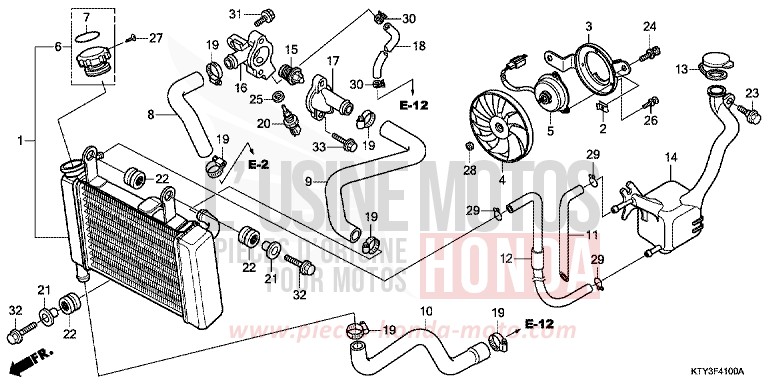

RADIATOR for CBR125RT ROSS WHITE (NH196) from 2013

RADIATOR for CBR125RT ROSS WHITE (NH196) from 2013
Reference
Product name
#1 19010-KTY-H51

RADIATOR COMP

Price €410.90
#2 19014-KEA-003

NUT, SETTING (6MM)

Price €6.47
#3 19015-KPP-T01

SHROUD COMP

Price €46.64
#4 19020-KPP-T01

FAN COMP, COOLING

Price €33.44
#5 19030-KPP-T01

MOTOR COMP, FAN

Price €327.28
#6 19045-KPC-871

CAP COMP, RADIATOR (TRAD)

Price €77.96
#7 19055-KPC-871

SEAL, RADIATOR CAP (PICTOGRAPH)

Price €11.93
#8 19061-KTY-H50

HOSE, THERMOSTAT

Price €12.50
#9 19062-KPP-860

HOSE, RADIATOR UPPER

Price €12.71
#10 19063-KTY-D30

HOSE, RADIATOR LOWER

Price €11.27
#11 19104-KPP-930

TUBE, RESERVE TANK BREATHER

Price €3.55
#12 19105-KTY-H50

TUBE, RADIATOR BREATHER

Price €18.47
#13 19109-KBP-900

CAP, RESERVE TANK

Price €3.49
#14 19110-KPP-930

TANK, RADIATOR RESERVE

Price €38.90
#15 19300-GEE-003

THERMOSTAT

Price €73.88
#16 19311-KTY-D30

CASE COMP, THERMOSTAT

Price €40.74
#17 19315-KGH-900

COVER, THERMOSTAT

Price €10.99
#18 19320-KPP-T00

TUBE A, THERMOSTAT CASE

Price €13.40
#19 19506-KGH-900

CLAMP, WATER HOSE

Price €4.40
#20 37870-KRJ-901

SENSOR ASSY, WATER TEMPERATURE

Price €75.68
#21 61102-KTY-D30

COLLAR, RADIATOR MOUNTING

Price €9.36
#22 61304-415-000

RUBBER, HEADLIGHT CASE MOUNTING

Price €7.38
#23 90111-162-000

BOLT, FLANGE, 6MM

Price €5.76
#24 90120-GHB-601

BOLT-WASHER, 6X12

Price €5.69
#25 90454-MC7-000

WASHER, SPECIAL, 12MM

Price €5.53
#26 93891-0400607

SCREW-WASHER, 4X6

Price €0.78
#27 93901-22020

SCREW, TAPPING, 3X6

Price €0.62
#28 90315-MFL-003

NUT, FLANGE, 3MM

Price €5.09
#29 95002-02100

CLIP, TUBE (B10)

Price €1.06
#30 95002-4105008

CLAMP, TUBE (D105)

Price €1.48
#31 95701-0601600

BOLT, FLANGE, 6X16

Price €1.15
#32 95701-0602200

BOLT, FLANGE, 6X22

Price €1.39
#33 96001-0602500

BOLT, FLANGE, 6X25

Price €1.48
