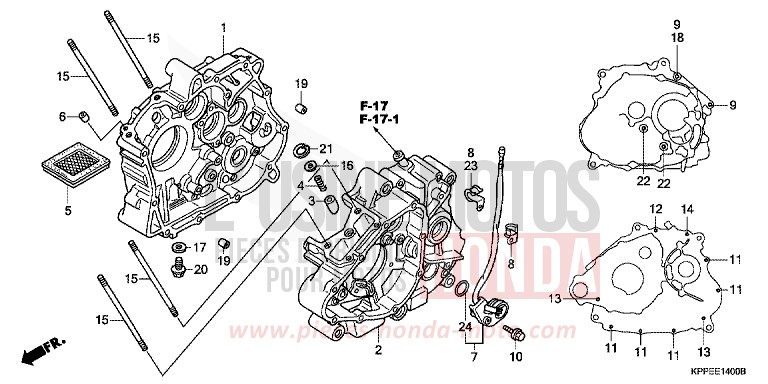

CRANKCASE for CBR125R ROSS WHITE (NH196B) from 2007

CRANKCASE for CBR125R ROSS WHITE (NH196B) from 2007
Reference
Product name
#1 11100-KPP-860

CRANKCASE COMP, R

Price €410.28
#2 11200-KTY-D30

CRANKCASE COMP, L

Price €424.02
#3 14521-KPP-900

PLUG, BEARING PUSH

Price €18.32
#4 14531-KPP-900

SPRING, BEARING PUSH

Price €0.88
#5 15421-035-010

SCREEN, OIL FILTER

Price €6.56
#6 15517-KGH-900

ORIFICE, 27

Price €8.57
#7 35759-KTY-D31

CONTACT ASSY, CHANGE SWITCH

Price €62.14
#8 35761-KGH-900

CLIP, SWITCH CORD

Price €5.18
#9 90001-KPP-860

BOLT, FLANGE, 6X65

Price €5.40
#10 96001-0602200

BOLT, FLANGE, 6X22

Price €1.48
#11 90010-GHB-710

BOLT, FLANGE, 6X40

Price €1.70
#12 90010-GHB-740

BOLT, FLANGE, 6X55

Price €3.54
#13 90010-GHB-760

BOLT, FLANGE, 6X65

Price €4.91
#14 90010-GHB-780

BOLT, FLANGE, 6X75

Price €5.70
#15 90031-KGH-900

BOLT, CYLINDER STUD

Price €5.30
#16 90403-KPP-900

WASHER, 3X11X10

Price €0.90
#17 90407-259-000

PACKING, DRAIN COCK, 125X20

Price €5.18
#18 90488-425-000

WASHER, SEALING, 6MM

Price €4.40
#19 90702-KFM-900

DOWEL PIN, 8X12

Price €3.11
#20 92800-12000

BOLT, DRAIN PLUG, 12MM

Price €2.65
#21 94520-12000

CIRCLIP, INTERNAL, 12MM

Price €0.86
#22 95701-0603500

BOLT, FLANGE, 6X35

Price €1.32
#23 32906-061-000

CLIP, HIGH TENSION CORD

Price €7.96
#24 91301-KTY-D31

O-RING, 202X25

Price €10.26
