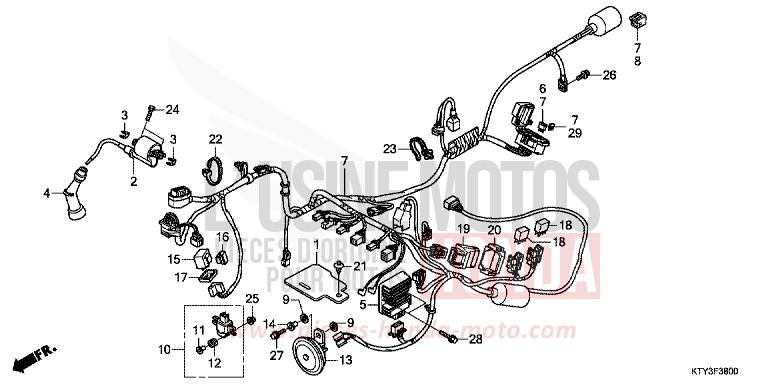

WIRE HARNESS for CBR125R ROSS WHITE (NH196) from 2012

WIRE HARNESS for CBR125R ROSS WHITE (NH196) from 2012
Reference
Product name
#1 19127-KTY-H50

RUBBER, HORN

Price €9.36
#2 30510-KTY-D31 i

COIL COMP, IGNITION

Price €41.16
#3 30520-GFM-900

SPACER OF COIL D'IGNITION

Price €9.52
#4 30700-KRS-971 i

CAP ASSY, NOISE SUPPRESSOR

Price €20.08
#5 31600-KVK-901

RECTIFIER ASSY, REGULATOR

Price €407.58
#6 31730-MAS-601 i

DIODENEINHEIT, DREIWEG (SUMITOMO)

Price €22.76
#7 32100-KTY-H50

HARNESS, WIRE

Price €235.93
#8 32606-GEV-761

CAP, FAUX (4P) (ROUGE)

Price €10.52
#9 33714-KL3-620

RUBBER OF SUPPORT OF REAR LIGHT

Price €7.60
#10 35160-KPP-T01

SENSOREINHEIT, BOESCHUNGSWINKEL

Price €75.02
#11 35162-MGC-003

COLLAR

Price €13.91
#12 35163-MGC-003

RUBBER GROMMET

Price €10.55
#13 38110-KPP-T01

HORN COMP. (TOP)

Price €37.60
#14 38117-KFE-701 i

RING, ADJUSTMENT KLAXON

Price €3.28
#15 38301-KJ6-743 i

TURN SIGNAL RELAY COMP. (MITSUBA)

Price €69.11
#16 38306-GE7-000 i

RUBBER D'DAMPER OF CENTER CLIGNOTANTE

Price €14.16
#17 38307-GJ1-014

COVER, SEAL (MITSUBA)

Price €8.56
#18 38501-KWN-901

RELAIS COMP. ENERGIE (MICRO ISO 4P) (OMRON)

Price €8.48
#19 38770-KTY-H52 i

PGM-FI UNIT

Price €257.10
#20 38771-KTY-D30

CUSHION, PGM-FI UNIT

Price €7.57
#21 90116-KWT-900

RIVET, PUSH, 7MM

Price €9.65
#22 90650-KV6-003 i

STRIPE, CABLE 95MM

Price €9.46
#23 91540-KPH-902

CLIP, HARNESS BAND

Price €3.97
#24 92101-060204J i

BOLT HEX., 6X20

Price €1.81
#25 94050-06080 i

FLANGE NUT, 6MM

Price €1.20
#26 95701-0601000 i

FLANGE BOLT, 6X10

Price €1.15
#27 95701-0601600 i

FLANGE BOLT, 6X16

Price €1.18
#28 95701-0602000 i

FLANGE BOLT, 6X20

Price €1.08
#29 98200-41000

MINI-FUSE (10A)

Price €1.25
