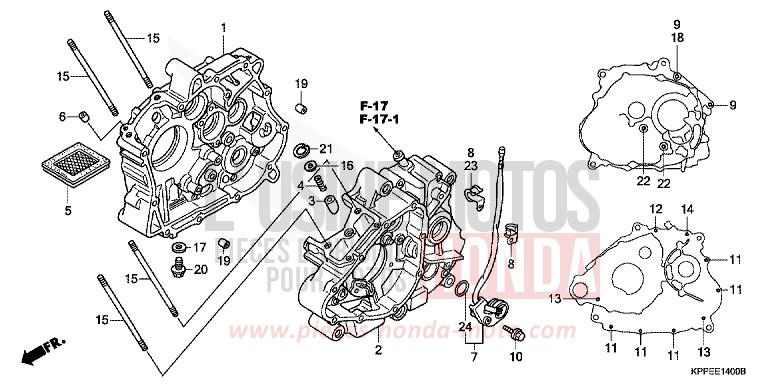

CRANKCASE for CBR125R MILLENNIUM RED (R263) from 2006

CRANKCASE for CBR125R MILLENNIUM RED (R263) from 2006
Reference
Product name
#1 11100-KPP-860 i

CRANKCASE COMP, R

Price €240.30
#2 11200-KTY-D30 i

CRANKCASE COMP, L

Price €297.60
#3 14521-KPP-900

PLUG, BEARING PUSH

Price €29.47
#4 14531-KPP-900

SPRING, BEARING PUSH

Price €3.16
#5 15421-035-010

SCREEN, OIL FILTER

Price €12.37
#6 15517-KGH-900

ORIFICE, 27

Price €3.16
#7 35759-KPP-901

SWITCH ASSY, CHANGE

Price €54.74
#8 35761-KGH-900

CLIP, SWITCH CORD

Price €3.97
#9 90001-KPP-860

BOLT, FLANGE, 6X65

Price €4.70
#10 96001-0602200 i

BOLT, FLANGE, 6X22

Price €1.50
#11 90010-GHB-710 i

BOLT, FLANGE, 6X40

Price €1.74
#12 90010-GHB-740

BOLT, FLANGE, 6X55

Price €5.08
#13 90010-GHB-760

BOLT, FLANGE, 6X65

Price €5.83
#14 90010-GHB-780

BOLT, FLANGE, 6X75

Price €5.96
#15 90031-KGH-900

BOLT, CYLINDER STUD

Price €5.83
#16 90403-KPP-900

WASHER, 3X11X10

Price €3.28
#17 90407-259-000 i

PACKING, DRAIN COCK, 125X20

Price €6.19
#18 90488-425-000 i

WASHER, SEALING, 6MM

Price €7.07
#19 90702-GB6-910 i

DOWEL PIN, 8X12

Price €3.97
#20 92800-12000 i

BOLT, DRAIN PLUG, 12MM

Price €2.70
#21 94520-12000

CIRCLIP, INTERNAL, 12MM

Price €0.88
#22 95701-0603500 i

BOLT, FLANGE, 6X35

Price €1.34
