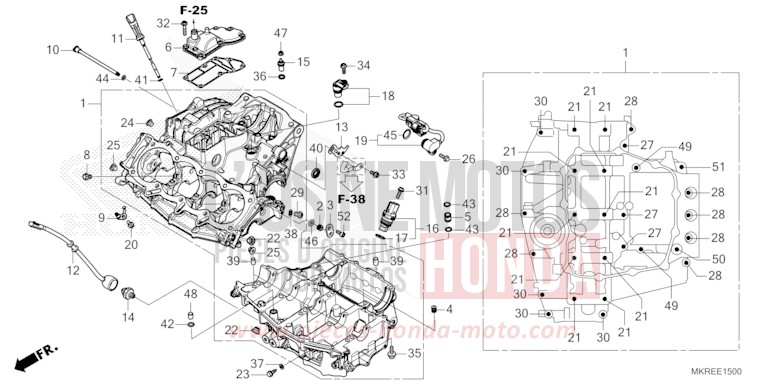

CRANKCASE for CBR1000ST GRAND PRIX RED (R380) from 2024

CRANKCASE for CBR1000ST GRAND PRIX RED (R380) from 2024
Reference
Product name
#1 11000-MKR-DH0

CRANKCASE SET

Price €3,670.01
#2 11202-MKR-D10

COLLAR, SEALING

Price €14.16
#3 11205-MKR-D10

PLATE, SEALING COLLAR STOPPER

Price €5.99
#4 11206-MKR-D10

ORIFICE

Price €17.02
#5 11207-MKR-D10

COLLAR, ORIFICE

Price €18.44
#6 11410-MKR-D10

COVER COMP, STARTER GEAR

Price €145.03
#7 11415-MKR-D11

GASKET, STARTER GEAR COVER

Price €14.93
#8 15290-MKR-DH1

BOLT COMP, OIL JET

Price €76.75
#9 15330-MKR-D11

JET COMP, PISTON

Price €48.85
#10 15350-MFL-000

PIPE COMP, TRANSMISSION OIL JET

Price €86.51
#11 15750-MKR-D10

GAUGE, OIL LEVEL

Price €40.98
#12 32101-MKR-D10

SUB HARNESS, ENGINE

Price €21.34
#13 32154-MKR-D10

STAY, STROKE SENSOR

Price €13.15
#14 35500-MJ4-024 i

ASSY. SWITCH OF PRESSURE OIL (DENSO)

Price €67.16
#15 35600-MKF-D41

ASSY. SWITCH NEUTRAL

Price €50.26
#16 37500-MKZ-J31

SENSOR ASSY, CRANK

Price €139.19
#17 37501-K2Y-J01

O-RING

Price €6.30
#18 37700-MJE-D01

ASSY. SENDER OF SPEED (TDK-EPC)

Price €47.42
#19 38800-MKR-D11

SENSOR ASSY, ANGLE

Price €421.24
#20 90001-MJP-G50

BOLT, FLANGE SOCKET, 6X14

Price €5.83
#21 90001-MKR-D11

BOLT, FLANGE, 9X120

Price €16.60
#22 90002-RGA-000

BOLT SEALING, 12X8

Price €8.06
#23 90004-MKR-D10

BOLT, SPECIAL, 6X18

Price €5.34
#24 90005-MAZ-000

BOLT OF SOCKET, 10MM

Price €5.71
#25 90005-MJP-G80

BOLT OF SOCKET, 10MM

Price €10.02
#26 90011-MGE-D00

BOLT OF STUD, 6MM

Price €8.03
#27 90017-MEL-000

BOLT, FLANGE, 7X60

Price €6.46
#28 90017-MFL-000

BOLT, FLANGE, 7X50

Price €6.82
#29 90019-MAT-000

BOLT, SEALING, 8MM

Price €9.20
#30 90019-MFA-D00

FLANGE BOLT, 7X40

Price €6.46
#31 90026-GHB-650

FLANGE BOLT, 6X18

Price €5.46
#32 90027-GHB-700

BOLT, FLANGE, 6X30

Price €5.96
#33 90030-GHB-630

FLANGE BOLT, 6X14

Price €5.46
#34 90031-GHB-650

FLANGE BOLT, 6X18

Price €5.71
#35 90102-VK4-000

BOLT, FLANGE SOCKET, 6X20

Price €2.70
#36 90443-MJ6-000

WASHER OF NEUTRAL

Price €5.02
#37 90463-ML7-000 i

WASHER SEALING, 6.5MM

Price €4.62
#38 90475-703-000 i

WASHER C, 8MM

Price €0.90
#39 90701-MV9-670

STUD, 10X16

Price €7.63
#40 91203-KA4-771 i

GASKET SEALING D'OIL, 14X22X5 (NOK)

Price €7.16
#41 91303-MJ0-003

O-RING, 6.3X2.3 (ARAI)

Price €6.65
#42 91305-422-000 i

O-RING, 98X24

Price €7.34
#43 91305-R7L-003

O-RING, 106X19

Price €5.41
#44 91307-422-000 i

O-RING, 48X19

Price €6.88
#45 91310-MGE-D01

O-RING, 16.5X2.5

Price €14.00
#46 91314-PC9-004 i

O-RING, 85X19 (NOK)

Price €4.96
#47 94050-04000 i

FLANGE NUT, 4MM

Price €0.88
#48 94301-10120

STUD, 10X12

Price €2.08
#49 95701-0805500 i

FLANGE BOLT, 8X55

Price €2.87
#50 95701-0808000 i

FLANGE BOLT, 8X80

Price €1.81
#51 95701-1006000 i

FLANGE BOLT, 10X60

Price €2.08
#52 96600-0601400

BOLT OF DOUILLE, 6X14

Price €1.25
